Quartz Capillaries
Precision quartz capillaries are available with round, shaped, micro-bore, thick-wall and multi-hole geometries. Select a family below, then define the outside profile, bore count and shape, dimensions, tolerances, length and end finish.
Quartz Capillary Products
Precision Bore Geometry

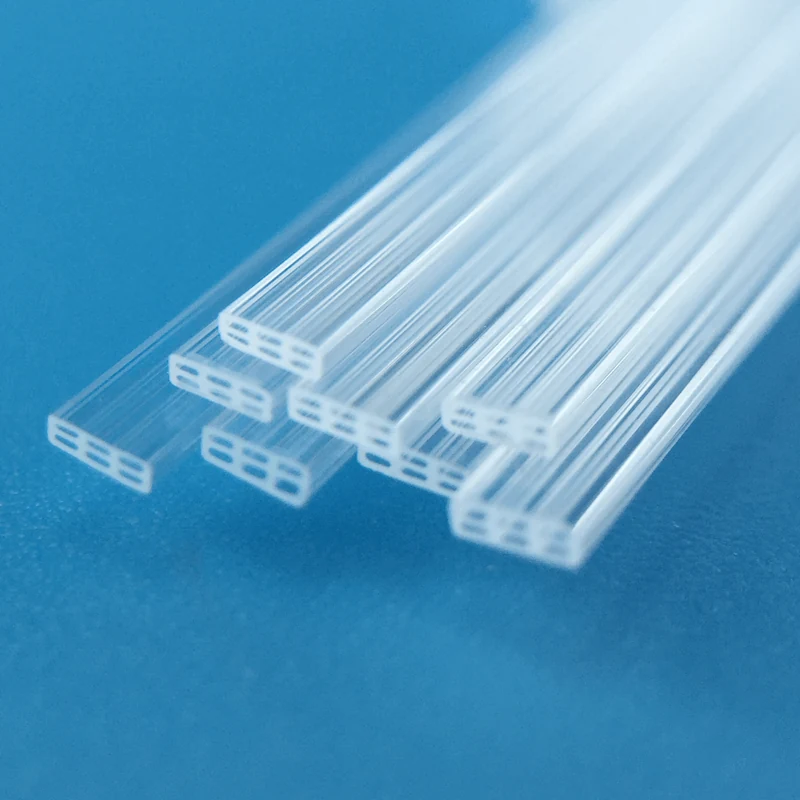

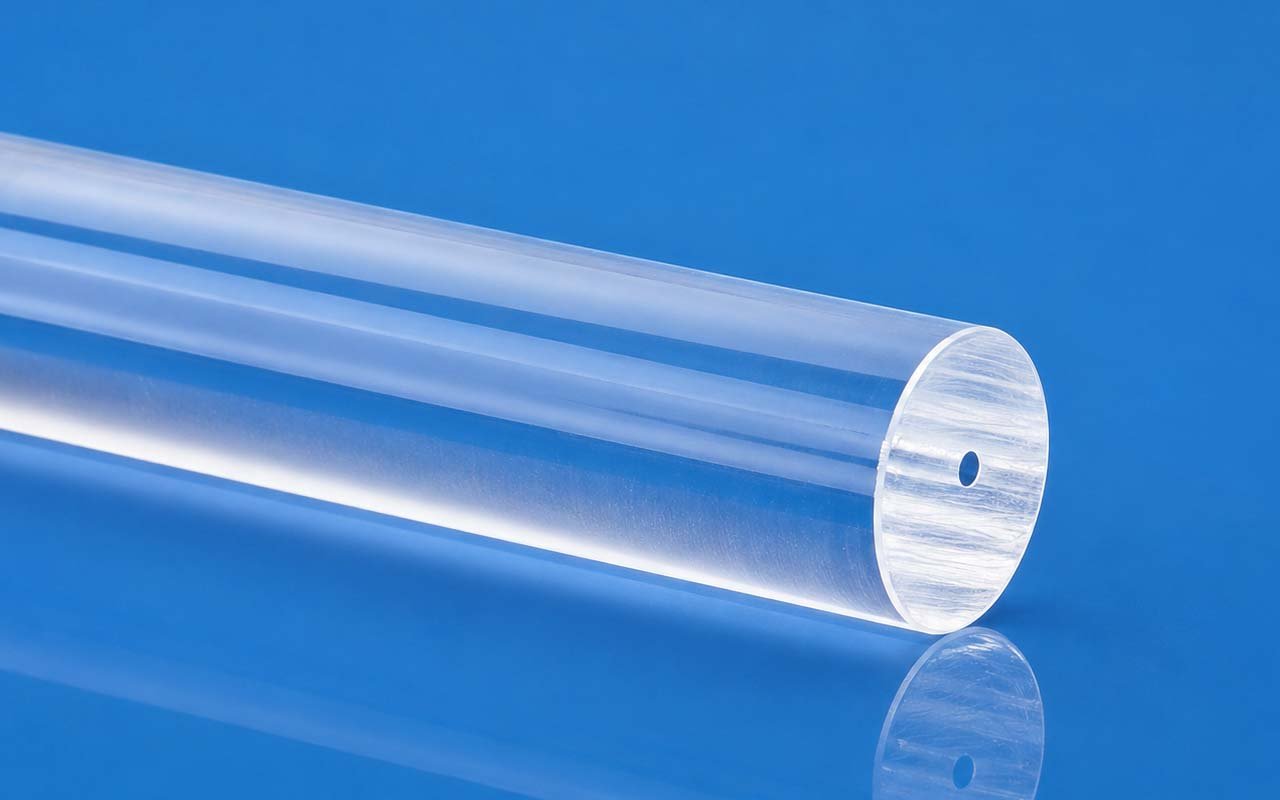

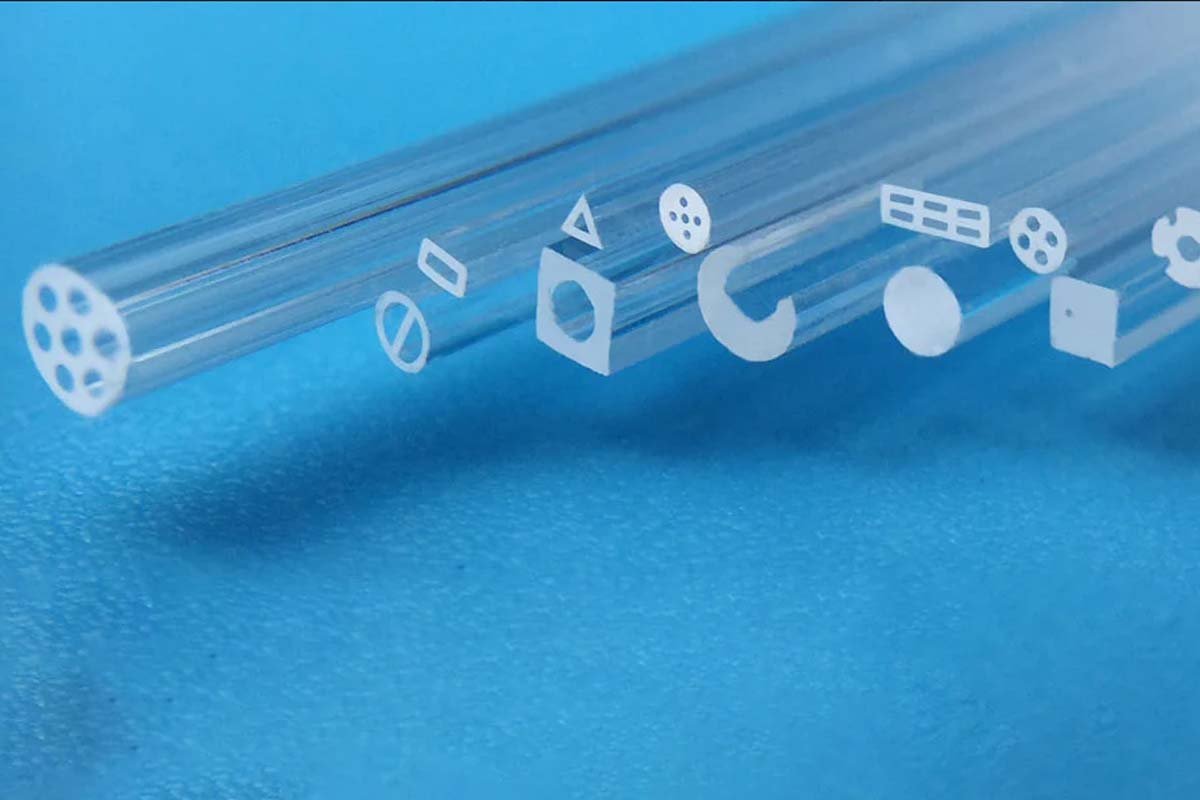

Quartz capillaries may use a round outer profile or a shaped section with one or multiple bores. Drawing and redrawing routes are selected according to bore size, wall or web thickness, concentricity and the required cross-section.
What to Specify
Provide the outside dimensions, bore diameter or shape, bore quantity and position, wall or web thickness, tolerances, length, end finish and inspection method. A cross-section drawing is required for shaped and multi-hole parts.
Typical Applications
Capillaries are used in analytical instruments, fluid handling, fiber and optical assemblies, sampling, micro-reaction systems, medical and research devices, and precision feedthroughs.
FAQ
Provide dimensions, material, tolerances, processing, quantity and application conditions.
Yes. Cutting, grinding, drilling, polishing, hot forming and welding can be reviewed against the requested geometry.
Customize This Product
Enter your dimensions of Quartz Capillaries — the technical drawing updates instantly, then request a quotation.
Technical Drawing
Drawing redraws live · blue hatched area = cut section · all dimensions in mm
Parameters
Every field is editable — drawing, weight estimate and part code update instantly.
Common Options
pcs
Configuration Summary
Attached to your inquiry automatically when you press “Use This Configuration”.
—
