Custom Quartz Infrared Heaters

Quartz IR heater tubes built around heated length, power rating, and mounting — the functional specs that determine whether a heater actually fits and performs in your equipment, not tube size alone.

Power, heated length, and tube geometry aren't independent — a given power rating has to be delivered through a heated length and tube diameter that can actually dissipate it without overheating the quartz. Send target power alongside heated length, not either alone.

Quartz Infrared Heater Types

Short-wave and medium-wave heaters differ in their peak emission wavelength and response time — short-wave heats faster and responds more quickly to power changes, medium-wave has a more diffuse heat pattern. Which one fits your process depends on the material being heated and how fast you need the response; tell us your application and we'll confirm which type suits it.

Quartz Infrared Heaters Functional Standard & Manufacturing Limit

Tube geometry (OD, heated length, overall length) is something we supply directly; full heating-element assembly (element type, terminal wiring, power/voltage matching) depends on our current production scope for that specific configuration — confirm with us before assuming a complete wired heater is available off the shelf rather than tube stock built to your element and terminal spec.

Heated Length, Tube Geometry and Mounting

Heated length is the active radiating section; the unheated "cold ends" beyond it house the terminals and mounting points and don't contribute heat output. Overall length is heated length plus both cold ends, so specify heated length and terminal/mounting requirements separately rather than one overall number. Mounting geometry (end caps, brackets, clips) is confirmed against your fixture, since heater tubes are usually supported at both ends rather than freestanding.

Before shipment we check tube dimensions, heated-zone length, terminal condition, and — where a complete assembly with electrical connections is supplied — power/voltage and a functional test.

500 WAssembly Reference

1 / 2 kWAssembly References

1.2 µmShort-Wave Reference

2.4 µmMedium-Wave Reference

3.5 µmMedium-Long Reference

Gold / MilkyReflector Options

Supply Scope First

Electrical Ratings Apply Only to Confirmed Complete Heater Assemblies

Controlled Feature	Reference Capability / Requirement
Supply Scope	Quartz tube / structural components, or complete heater assembly only when explicitly confirmed
Heater Structure	Single tube, paired / banked tubes or filament-style assembly
Quartz Envelope	Transparent, milky or gold-reflector configuration
Heated Length	Separated from total length and mounting zones
Power / Voltage	Stated only for a confirmed complete electrical assembly
Wavelength Direction	Short-wave 1.2 µm, medium-wave 2.4 µm or medium-long 3.5 µm reference categories
Reference Power	500 W, 1 kW and 2 kW common assembly references, subject to electrical confirmation
Mounting	End terminations, brackets and clearances defined from equipment

Heater Selection

Match Wavelength Direction to the Heating Process

Reference Type	Wavelength Direction	Supply-Scope Check
Short-wave	Approx. 1.2 µm reference	Confirm emitter and complete assembly scope
Medium-wave	Approx. 2.4 µm reference	Confirm envelope, reflector and electrical data
Medium-long wave	Approx. 3.5 µm reference	Confirm material response and heater construction
Quartz component only	No electrical rating assigned	Quote tube geometry and mounting features

Available Forms

Configurations Defined by the Process

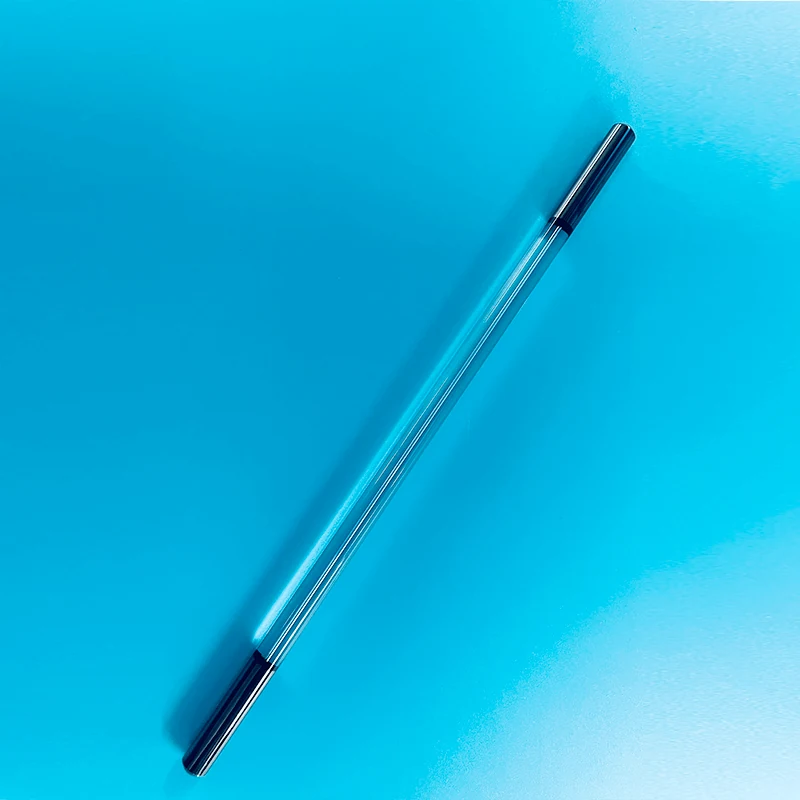

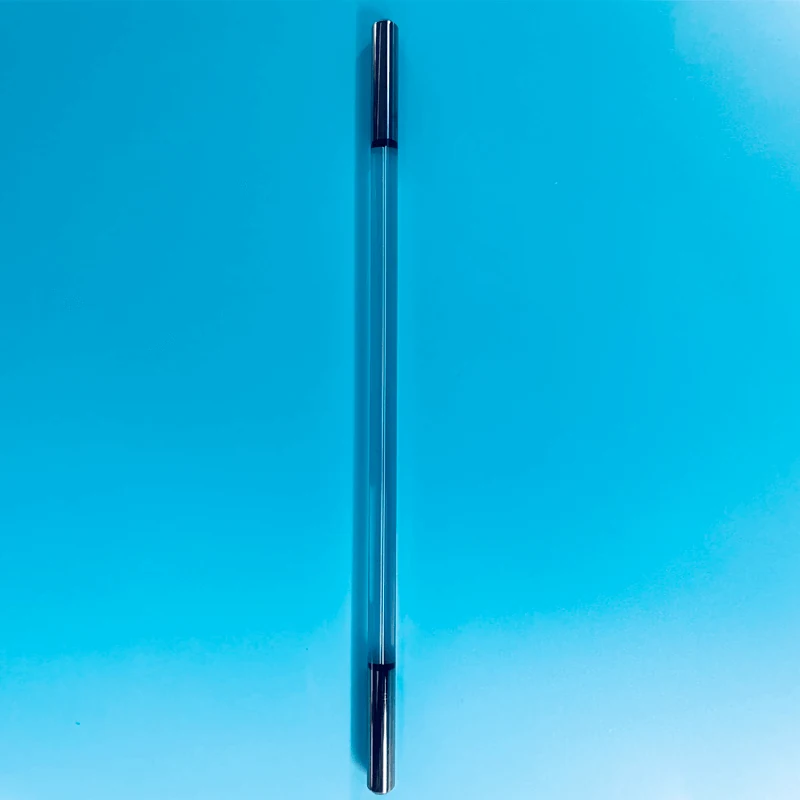

Transparent Tube HeaterQuartz envelope with the radiant structure visible

Milky Quartz HeaterScattering envelope for broader radiant distribution

Gold-Reflector HeaterReflective zone directs radiation toward the work area

Heater Bank / Component SetMultiple tubes and supports arranged to equipment geometry

Applications

Heating, Curing and Drying

Industrial HeatingHeater geometry matched to part width and distance

Coating & Adhesive CuringWavelength direction selected from material response

Drying LinesTube or bank geometry integrated into a conveyor system

Space / Process HeatingQuartz components or confirmed complete assemblies by scope

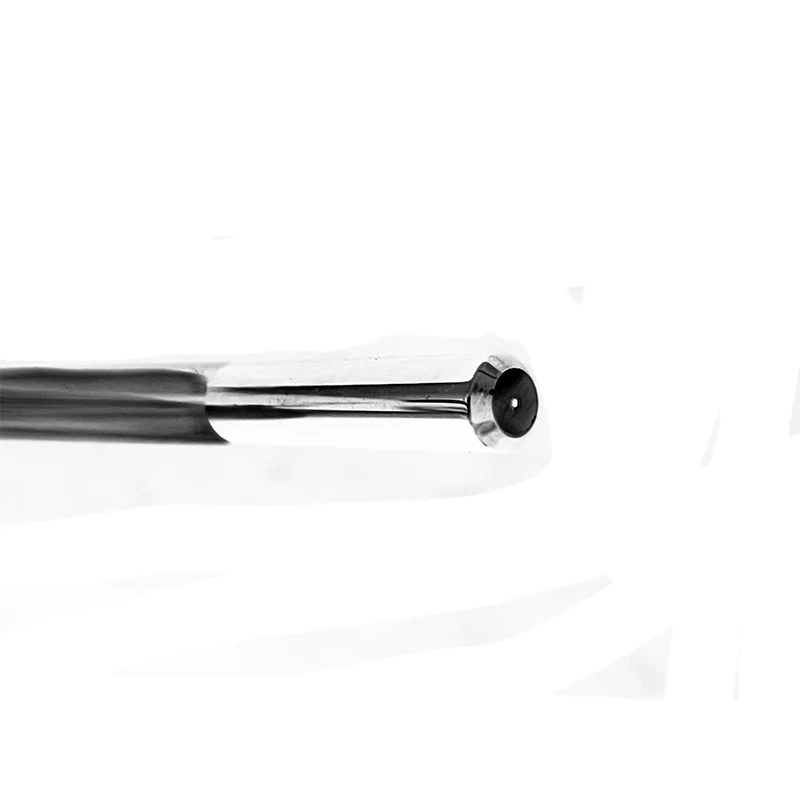

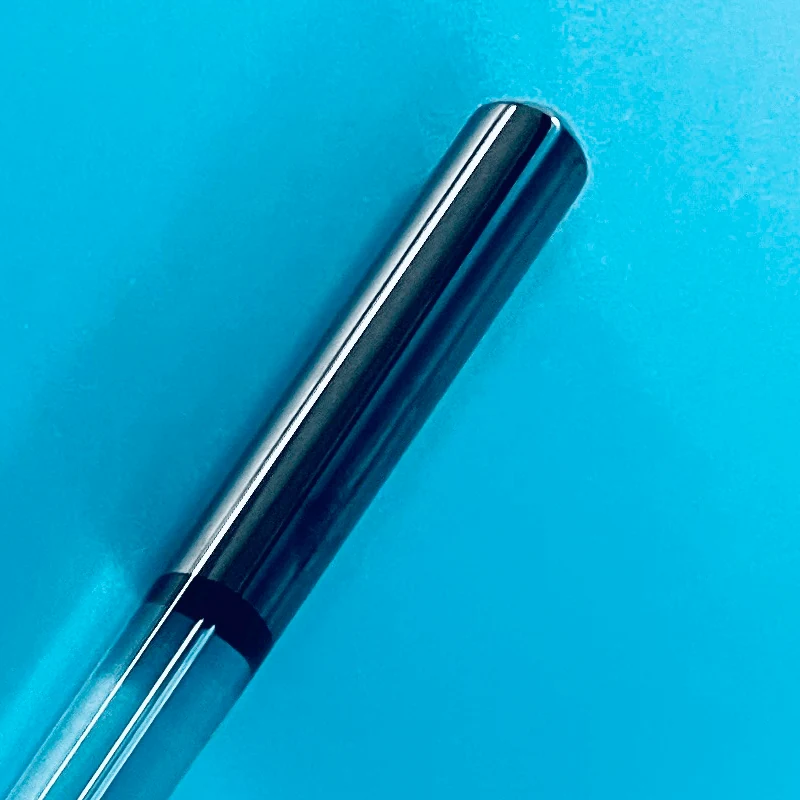

Product Examples

Product Forms and Finished Components

Need an infrared-heater component or confirmed assembly?Send supply scope, heated length, tube geometry, wavelength direction, power, voltage, reflector and mounting details.

Open the Product Configurator

Engineering Data

Grade-Qualified Material Purity

Electric-fused / flame-fused quartz: SiO₂ ≥99.99%; synthetic JGS1-grade fused silica: ≥99.999%. Grade and lot certificate govern supplied material.

Engineering Data

Emitter Wavelength Ranges

Emitter line	Typical wavelength interval	Peak / selection basis
Short-wave tungsten	0.8–1.8 µm	Peak 1.2 µm
Medium-wave alloy	2.2–3.5 µm	Nominal peak 2.4 µm; element temperature determines spectrum
Carbon-fiber	2–9.5 µm catalog interval	Broad emission interval; confirm spectrum at rated operation

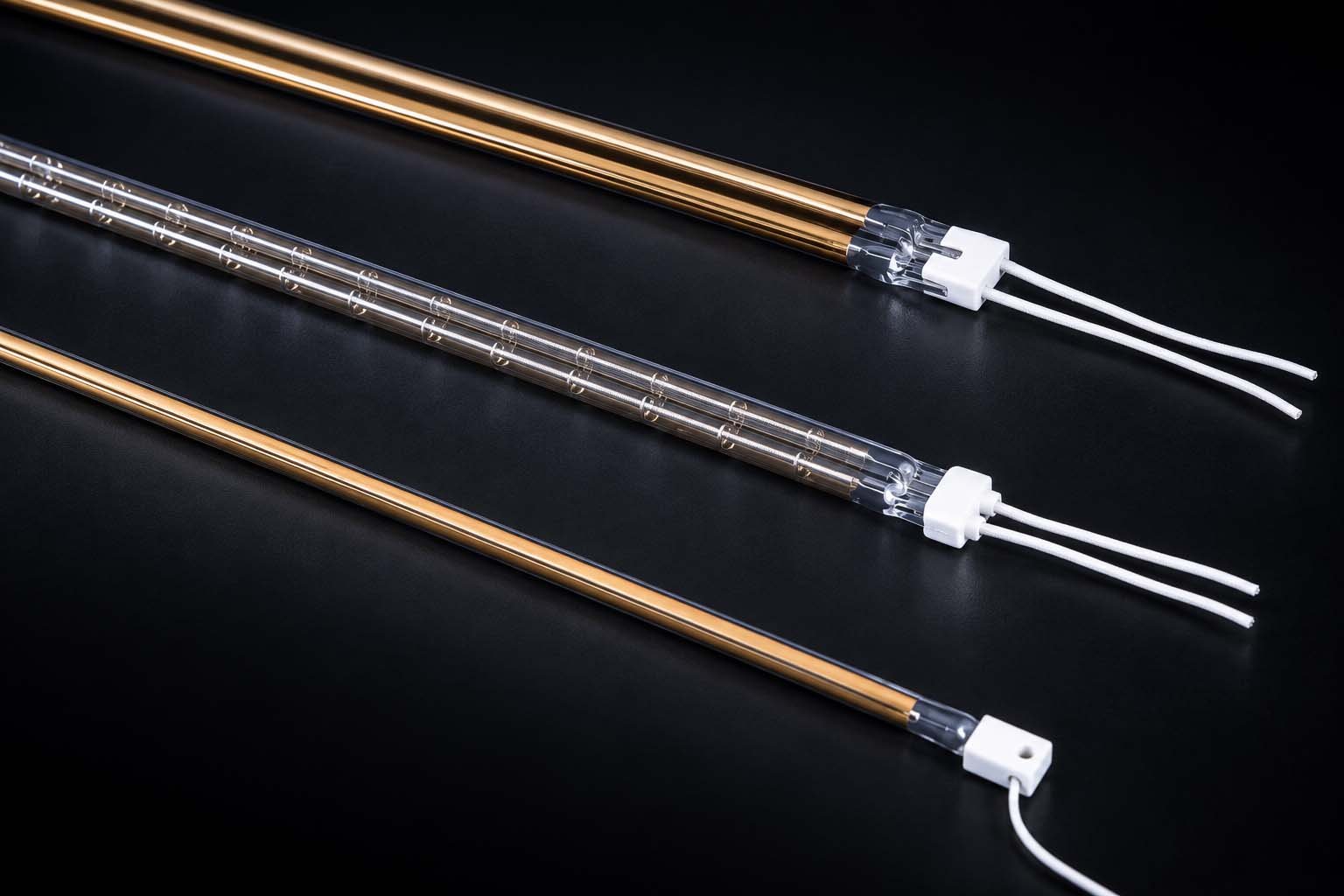

Single and twin quartz envelopes, gold or white reflectors, straight and custom-shaped lamps, and horizontal or vertical configurations are specified by rated voltage, power, heated length and reflector orientation. Carbon-fiber emission is a broad interval, not a single 2–9.5 µm peak.
