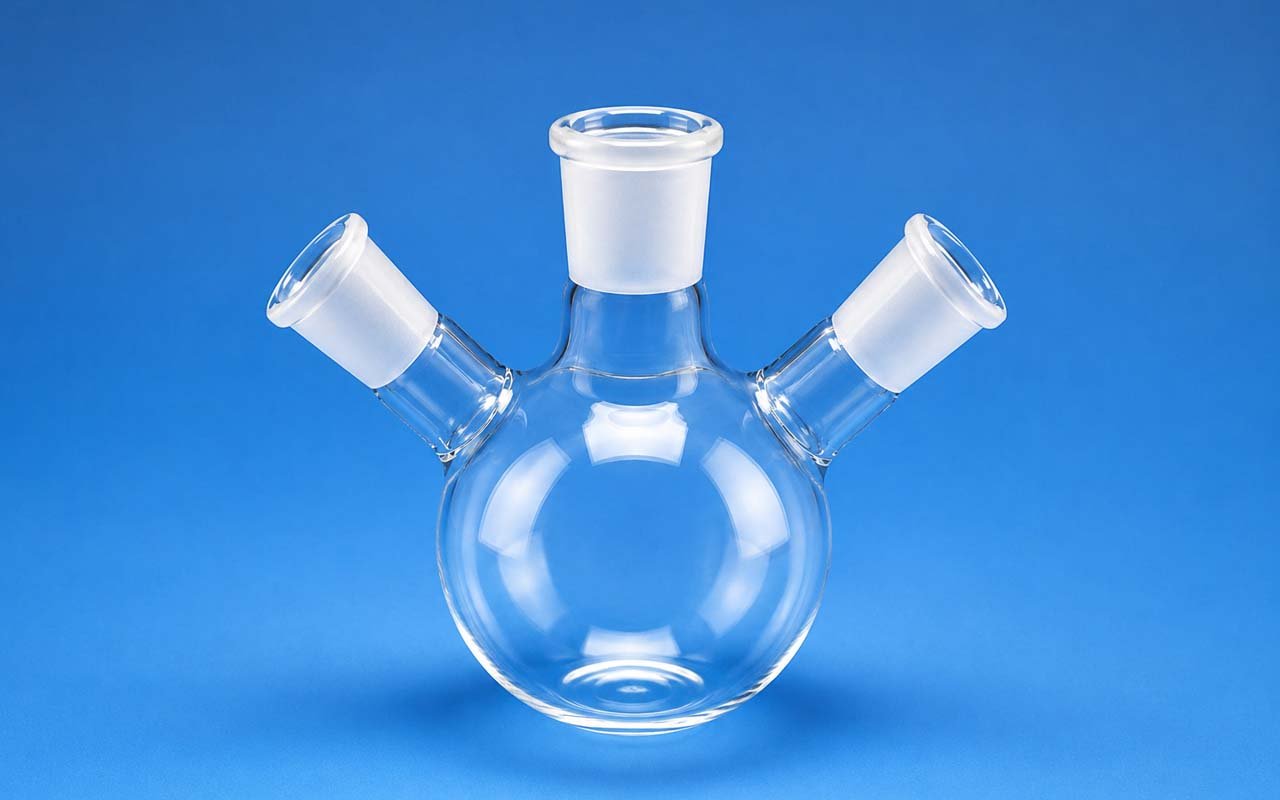

Custom Quartz Flasks

Parameter	Typical Range
Capacity	50–2,000 mL
Body diameter	50–150 mm
Height	80–250 mm
Neck OD	10–30 mm
Joint size	Standard ground joints (e.g. 14/20, 19/22, 24/40)
Bottom shape	Round-bottom or flat-bottom

Inquiry

Quartz flasks built around neck, joint, and port configuration — the connections that determine what the flask can actually be fitted to.

Capacity, body diameter, and neck configuration are quoted together — a given capacity can come in different body proportions, so send body diameter and height alongside target volume, not volume alone.

Neck, Ground-Joint and Multi-Port Options

Single-neck flasks are standard; two- and three-neck configurations are available for reactions needing simultaneous stirring, addition, and monitoring. Joint size on each neck is confirmed against your existing glassware or equipment — send the joint standard your setup uses rather than assuming a default size.

Quartz Flasks Size / Capacity / Joint Standard

Round-bottom flasks are typical for heating on a mantle; flat-bottom flasks stand unsupported on a bench. Neck count and joint size are the two specs most likely to need confirming against your existing setup — a flask with the right capacity but the wrong joint size won't connect to your condenser or stirrer.

Quartz Flask Body and Bottom Styles

Fabrication is hot-formed from tube or blown from a gather, with necks drawn and ground joints fused on, then fire-polished. Before shipment we check capacity, body dimensions, neck/joint fit, bottom shape, and weld/joint points.

25–1000 mLCapacity Series

1 / 2 / 3Neck Options

14/23Ground Joint

19/26Ground Joint

24/29Ground Joint

JGS2Material Option

Flask Configuration

Body Shape, Neck Count and Joint Size Must Be Ordered Together

Controlled Feature	Reference Capability / Requirement
Capacity	25, 50, 100, 250, 500 or 1000 mL reference series
Body Form	Round-bottom, flat-bottom or Erlenmeyer geometry
Neck Count	Single-, double- or triple-neck arrangement
Ground Joints	14/23, 19/26 or 24/29 reference sizes; custom joints by drawing
Neck Angle / Position	Center and side necks dimensioned from the body axis
Bottom	Round, flat or equipment-specific support interface
Material	Transparent JGS2-class fused quartz option
Assembly	Ports, joints and body inspected as one hot-worked assembly

Reference Flask Series

Choose Capacity and Connection Standard Together

Capacity Group	Nominal Capacities	Common Configuration
Small	25 / 50 mL	Single neck or compact multi-neck
Laboratory	100 / 250 mL	Round-bottom, flat-bottom or Erlenmeyer
Large	500 / 1000 mL	Confirm support, heating and neck layout
Custom	By drawing	Special port angles and joint combinations
