Custom Quartz Brackets, Supports & Holders

Quartz brackets and support structures machined and welded to your mounting-hole layout and support-point positions — built around how the part actually mounts in your equipment.

Overall size, mounting-hole position, and support-point position are one layout, not independent dimensions — a hole or support point positioned relative to the wrong reference edge won't align once the bracket is installed. Send a full drawing with a stated datum, not individual hole positions.

Common Quartz Support and Holder Structures

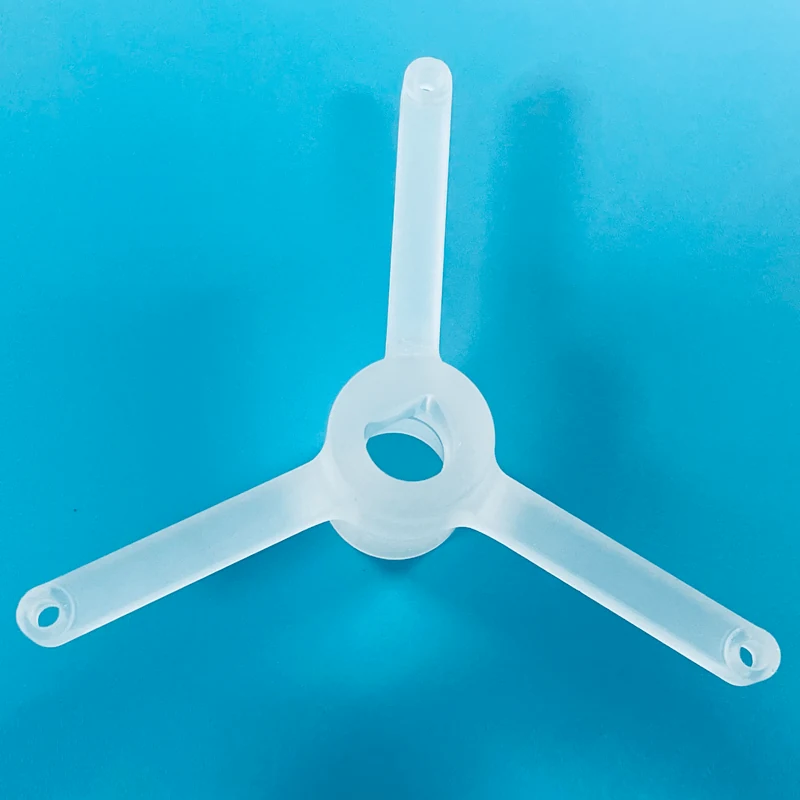

Brackets, stands, and holders are built from rod and plate stock combined by welding — a plate base with welded rod supports, or a rod frame with machined mounting features, depending on what the structure needs to hold and how it mounts. Tell us what the bracket supports (a tube, a plate, a component) and how it attaches to your equipment.

Mounting Holes, Support Points and Welded Joints

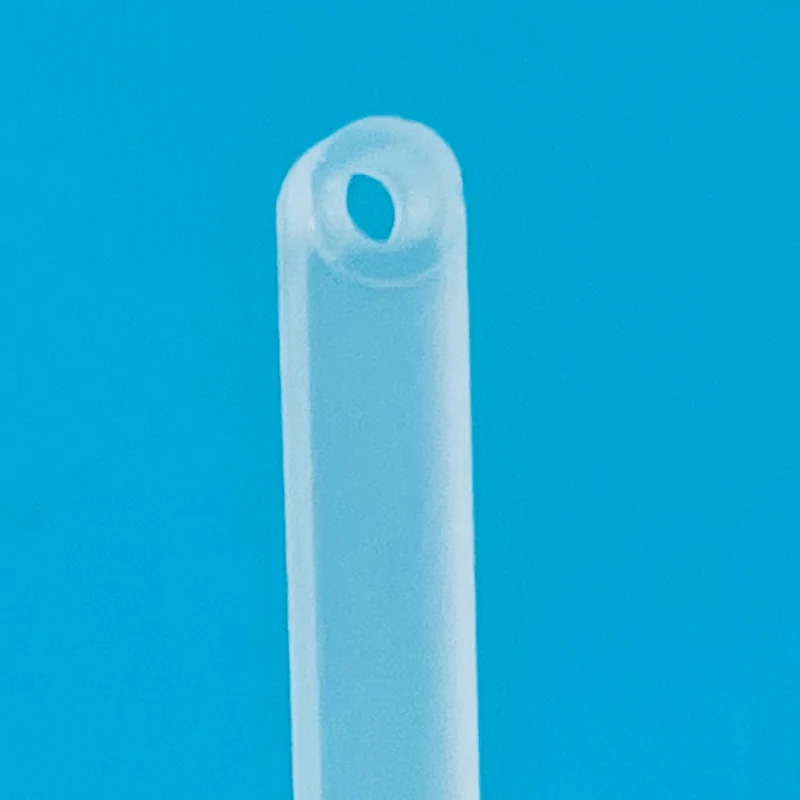

Mounting holes are added by mechanical or diamond drilling down to about Ø0.8 mm at ±0.02 mm; larger holes or slots are CNC-machined. Support points — where the structure contacts whatever it's holding — are positioned to match your component's geometry, not placed generically. Welded joints between rod and plate sections are checked for both strength and position, since a joint that's structurally sound but slightly misaligned can still throw off the overall support geometry.

Before shipment we check overall dimensions, hole/slot position, support-point position, straightness/flatness of the assembly, weld condition, and fit against your equipment drawing where provided.
