Custom Quartz Cleaning Tanks

Quartz wet-process tanks built as a complete assembly — walls, bottom, overflow, and port geometry — sized to your equipment or reproduced from a worn original.

Tank dimensions, wall thickness, port position, and weld distortion are one assembly chain, not independent specs — a port position shifts if the overall tank size changes, so confirm all of them together, not one dimension at a time.

Open, Overflow, Drain and Multi-Port Tank Configurations

• Open tank — a plain trough, no overflow or drain features, for simple immersion processes
• Overflow tank — includes a raised overflow lip or weir to maintain constant fluid level and skim surface contaminants
• Drain tank — includes a bottom or side drain for controlled fluid removal
• Multi-port tank — includes inlet, outlet, and instrumentation ports at specified positions for process control

Tank Walls, Bottoms, Overflow and Port Geometry

Wall thickness is chosen for both structural rigidity (a large tank full of liquid puts real load on the walls) and thermal stress resistance if the process involves heated fluid. Overflow and drain geometry are functional features, not just holes — overflow height sets your process fluid level, and drain position affects how completely the tank empties. Ports for fluid or instrumentation are welded in at a position set by your process, not placed arbitrarily.

Replacing an Existing Quartz Tank: Required Dimensions

Send the equipment model and, if you have it, the old tank or its drawing. At minimum we need inner and outer L×W×H, wall thickness, and the position of every port, overflow, and drain feature — matching only the outer dimensions is the most common cause of a tank that doesn't interface correctly with existing plumbing.

Fabrication is quartz plate cut, hot-formed at the corners or welded from flat panels, with ports and drains welded in and the assembly annealed. Before shipment we check inner/outer dimensions, squareness, warpage, port position, weld seams, and — where the application calls for it — a leak check.

5 LReference Capacity

10 LReference Capacity

20 LReference Capacity

30 LReference Capacity

±1%Volume Reference

Drain + OverflowPort Options

Wet Bench Integration

Internal Volume, Overflow Level and Port Locations Must Share One Datum

Controlled Feature	Reference Capability / Requirement
Capacity	5, 10, 20 or 30 L common reference series; custom volumes by drawing
Internal Dimensions	Working volume separated from outside envelope
Wall / Bottom Thickness	Defined from tank size, support and thermal cycle
Drain Port	Diameter, joint type, center position and dead-volume requirement
Overflow	Weir height, outlet size and return layout
Cover / Lip	Open top, cover support or equipment-specific rim
Volume Accuracy	±1% industry-reference quotation level where calibrated volume is required
Material / Packaging	Low-OH quartz option and clean packaging scope stated

Capacity Series

Capacity Is Only the Starting Point for a Replacement Tank

Nominal Capacity	Configuration Options	Must Match
5 L	Open or drain tank	Bench opening and port center
10 L	Drain or overflow tank	Internal dimensions and liquid level
20 L	Multi-port wet-process tank	Wall support and plumbing layout
30 L	Large custom assembly	Equipment envelope and handling method

Available Forms

Configurations Defined by the Process

Open TankSimple vessel with equipment-specific rim

Drain TankBottom or side drain positioned from a controlled datum

Overflow TankDefined liquid level and return geometry

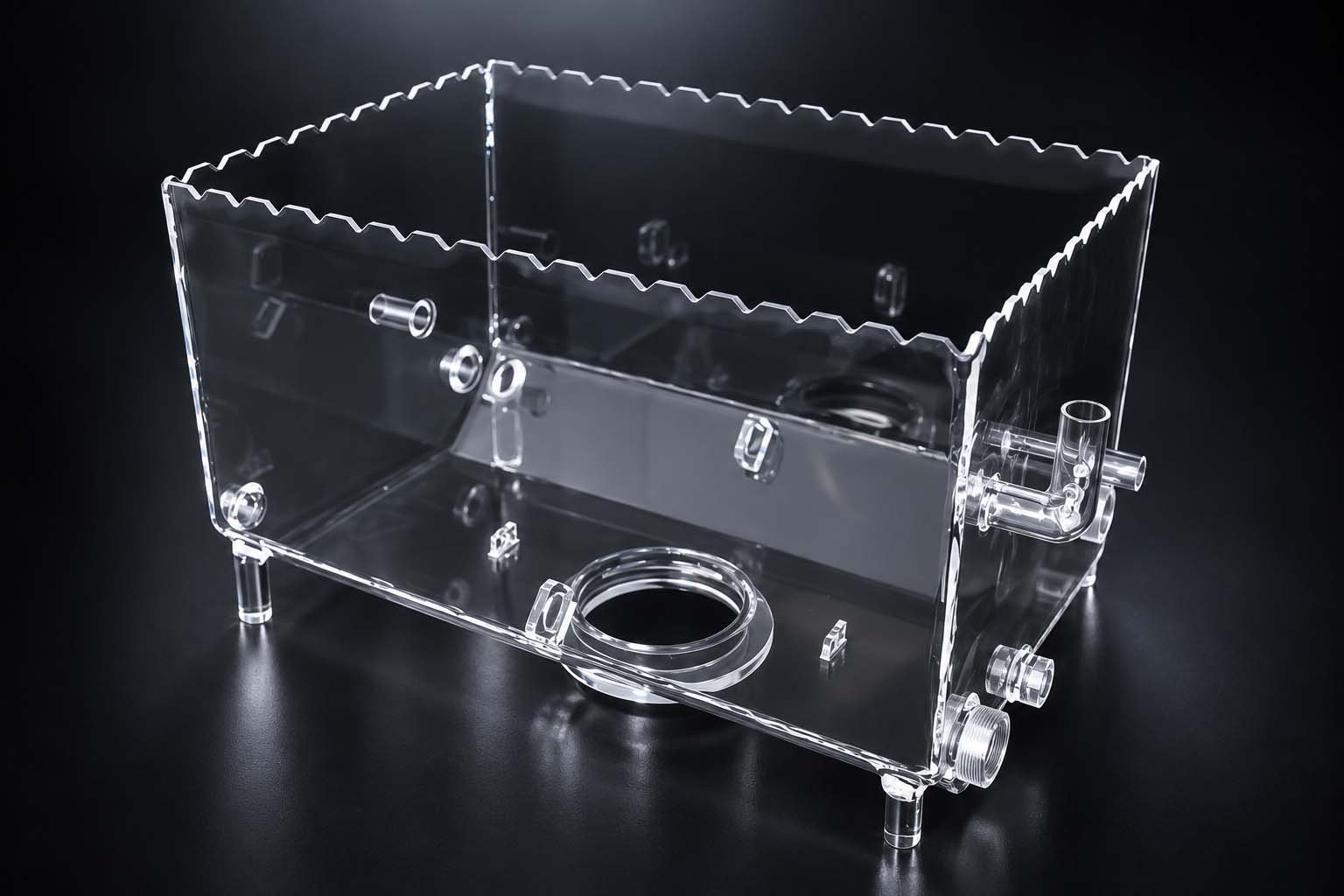

Multi-Port TankDrain, overflow, fill and sensor ports integrated by drawing

Applications

Semiconductor Wet Processing

RCA CleaningHigh-purity quartz tanks with controlled overflow and drain layout

Acid ProcessingQuartz vessel geometry matched to compatible wet-bench chemistry

Rinse StationsOverflow and return paths defined around liquid level

Replacement TanksPorts and datums reproduced from an existing drawing or sample

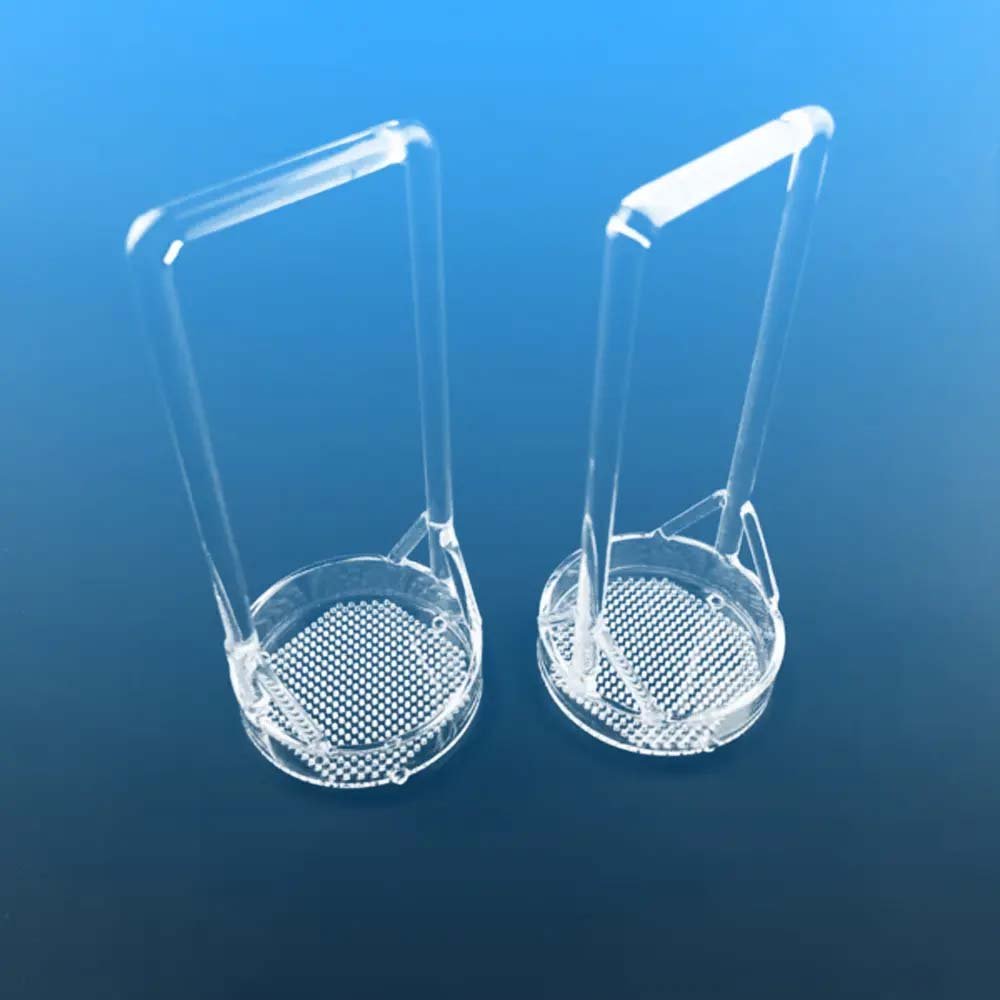

Product Examples

Product Forms and Finished Components

Replacing a quartz cleaning tank?Send internal and external dimensions, capacity, wall section, liquid level, every port center and the wet-bench opening.

Open the Product Configurator

Engineering Data

Grade-Qualified Material Purity

Electric-fused / flame-fused quartz: SiO₂ ≥99.99%; synthetic JGS1-grade fused silica: ≥99.999%. Grade and lot certificate govern supplied material.
