Custom Quartz BeakersCustom Quartz Distillation Apparatus
| Parameter | Typical Range |
|---|---|
| System volume (flask) | Confirmed per application |
| Condenser length | 150–500 mm |
| Joint sizes | Standard ground joints, confirmed per component |
| Receiver | Round-bottom flask or graduated receiver |
| Inlet / outlet | Confirmed per condenser type |
Quartz distillation systems built around condenser, receiver, and joint configuration — the connections that determine what the system actually assembles into.
Condenser length, joint size, and overall system height are quoted together — a longer condenser at the same joint size changes the overall assembled height, so confirm your bench or fume-hood clearance alongside condenser length.
Condensers, Receivers and Ground-Joint Connections

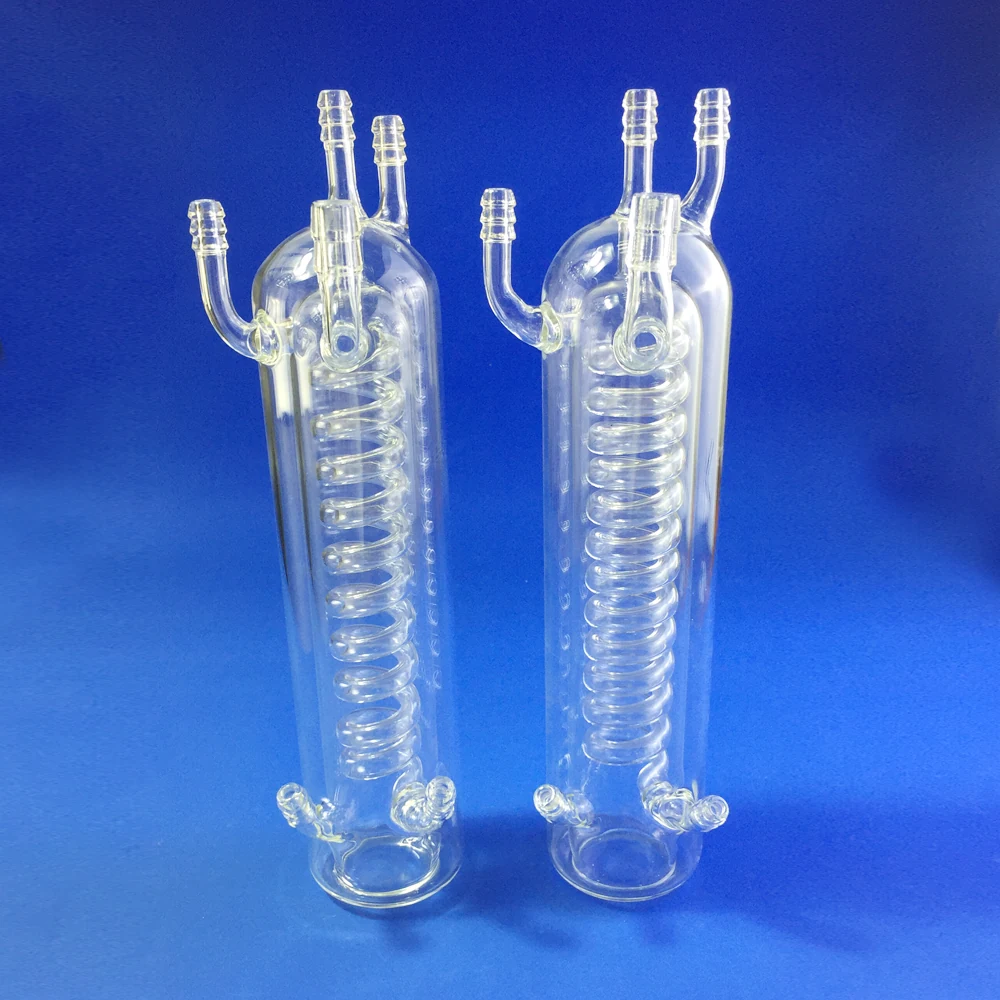

Straight and coiled condensers are both available; a coiled condenser gives more cooling surface in less vertical space, useful where headroom is limited. Every joint in the system — flask-to-condenser, condenser-to-receiver — needs to be the same standard size or fitted with an adapter; send the joint standard used by any existing components your new parts need to connect to.
Quartz Distillation System Configurations
Simple distillation (flask, condenser, receiver) and fractional distillation (with a column between flask and condenser) use the same joint and connection principles, just with an added component. Tell us which configuration you're building and we'll confirm the joint sizes needed at each connection point.
Fabrication is hot-formed and blown components with ground joints fused on, assembled and annealed as a system. Before shipment we check joint fit at each connection, overall assembly squareness, condenser and receiver dimensions, weld points, and leak integrity.
FlaskBoiling Component
CondenserCooling Component
ReceiverCollection Component
14/23Joint Reference
19/26Joint Reference
24/29Joint Reference
System Scope
A Distillation Quote Requires the Complete Component and Joint List
| Controlled Feature | Reference Capability / Requirement |
|---|---|
| System Type | Simple distillation, fractional distillation or reflux assembly |
| Flask Capacity | Selected from charge volume and heating method |
| Column / Condenser | Type, active length, jacket and coolant connections |
| Receiver | Capacity, outlet and vent arrangement |
| Ground Joints | Each mating joint size and gender listed |
| Overall Height | Checked against stand, hood and heater clearance |
| Support Points | Clamps and load-bearing locations identified |
| Material | Transparent JGS2-class fused quartz option |
Assembly Checklist
Define Every Mating Joint Before Manufacturing
| Component | Required Data | Interface Check |
|---|---|---|
| Boiling flask | Capacity, body, neck and heating method | Joint size and support |
| Column / condenser | Type, active length and coolant ports | Top and bottom joints |
| Receiver | Capacity, outlet and vent | Collection joint and support |
| Adapters / supports | Angle, tube size and clamp points | Matched-pair fit and overall height |
Available Forms
Configurations Defined by the Process
Simple Distillation SetFlask, condenser and receiver in a direct flow path
Fractionating AssemblyColumn inserted between boiling vessel and condenser
Reflux AssemblyReturn path and condenser arranged above the reactor
Custom Apparatus SetMatched quartz components supplied from one connection schedule
Applications
High-Purity Distillation and Reflux
Simple DistillationQuartz flow path for volatile separation
Fractional DistillationColumn and condenser geometry defined as a system
RefluxMatched joints and support points for continuous return
Custom PurificationComplete assembly reproduced from a P&ID or laboratory sketch
Need a complete quartz distillation set?Send the process flow, flask and receiver capacities, condenser type, every joint size, overall height and support points.
Open the Product ConfiguratorEngineering Data
Grade-Qualified Material Purity
Electric-fused / flame-fused quartz: SiO₂ ≥99.99%; synthetic JGS1-grade fused silica: ≥99.999%. Grade and lot certificate govern supplied material.
Customize This Product
Enter your dimensions of Custom Quartz Distillation Apparatus — the technical drawing updates instantly, then request a quotation.
Technical Drawing
Drawing redraws live · blue hatched area = cut section · all dimensions in mm
Parameters
Every field is editable — drawing, weight estimate and part code update instantly.
