Custom Quartz Lamp Holders & Heater Components

Quartz components that hold, space, and mount lamp or heater tubes inside equipment — sized to the tube they hold and the fixture they mount into.

Tube-fit diameter is the dimension to confirm first — it has to match the actual OD of the lamp or heater tube being held, with enough clearance to insert without binding but not so much that the tube shifts in use.

Quartz Lamp Holders & Heater Components Factory Standard & Manufacturing Limit

These parts are typically brackets, spacers, or end-support pieces machined to hold one or more lamp/heater tubes at a fixed spacing and position within your equipment. Overall size and mounting geometry are set by your equipment envelope, not chosen independently.

Tube-Holding, Spacing and Mounting Features

Tube-fit features (holes, slots, or notches sized to the tube OD) are cut by mechanical or diamond drilling for round holes, or CNC grinding for slots. Where multiple tubes are held in one part, spacing between fit points is checked as a set — consistent spacing matters more than any single hole being individually accurate, since it's the pattern that has to match your equipment's tube layout. Before shipment we check overall dimensions, hole/slot position and size, tube fit, mounting-feature position, and surface condition.

HalogenLamp Family

UVLamp Family

IRHeater Family

QuartzHot-Zone Material

CeramicAssembly Option

By DrawingMounting Geometry

Lamp Interface

Tube Fit, Slot Geometry and Mounting Position Define the Component

Controlled Feature	Reference Capability / Requirement
Lamp / Heater Type	Halogen, UV or IR equipment identified in the RFQ
Tube Fit Diameter	Clearance and contact zone defined from the actual lamp or heater tube
Hole / Slot	Width, depth and position dimensioned from mounting datums
Structure	Clamp, cradle, spacer, seat or insulating block
Material Scope	Quartz component alone or quartz plus ceramic parts as confirmed
Operating Environment	Temperature, radiation and electrical-clearance conditions supplied by the customer
Assembly Tolerance	Critical fits separated from non-functional outer dimensions
Replacement Part	Existing sample or equipment drawing used to reproduce interfaces

Component Type

Identify the Lamp Family Before Designing the Holder

Component	Function	Required Inputs
Tube cradle	Supports a hot quartz lamp envelope	Tube OD, contact length and mount
End holder	Locates the lamp near its termination	End geometry and electrical clearance
Spacer / insulator	Maintains distance between hot components	Thickness, holes and support load
Custom mounting block	Connects lamp assembly to equipment	All holes, slots and reference surfaces

Available Forms

Configurations Defined by the Process

Tube HolderCradle or clamp matched to lamp diameter

End SupportLocating component around a lamp termination

Quartz SpacerRigid separation element near the hot zone

Quartz-Ceramic ComponentCombined material scope only when confirmed

Applications

Lamp and Heater Equipment Assembly

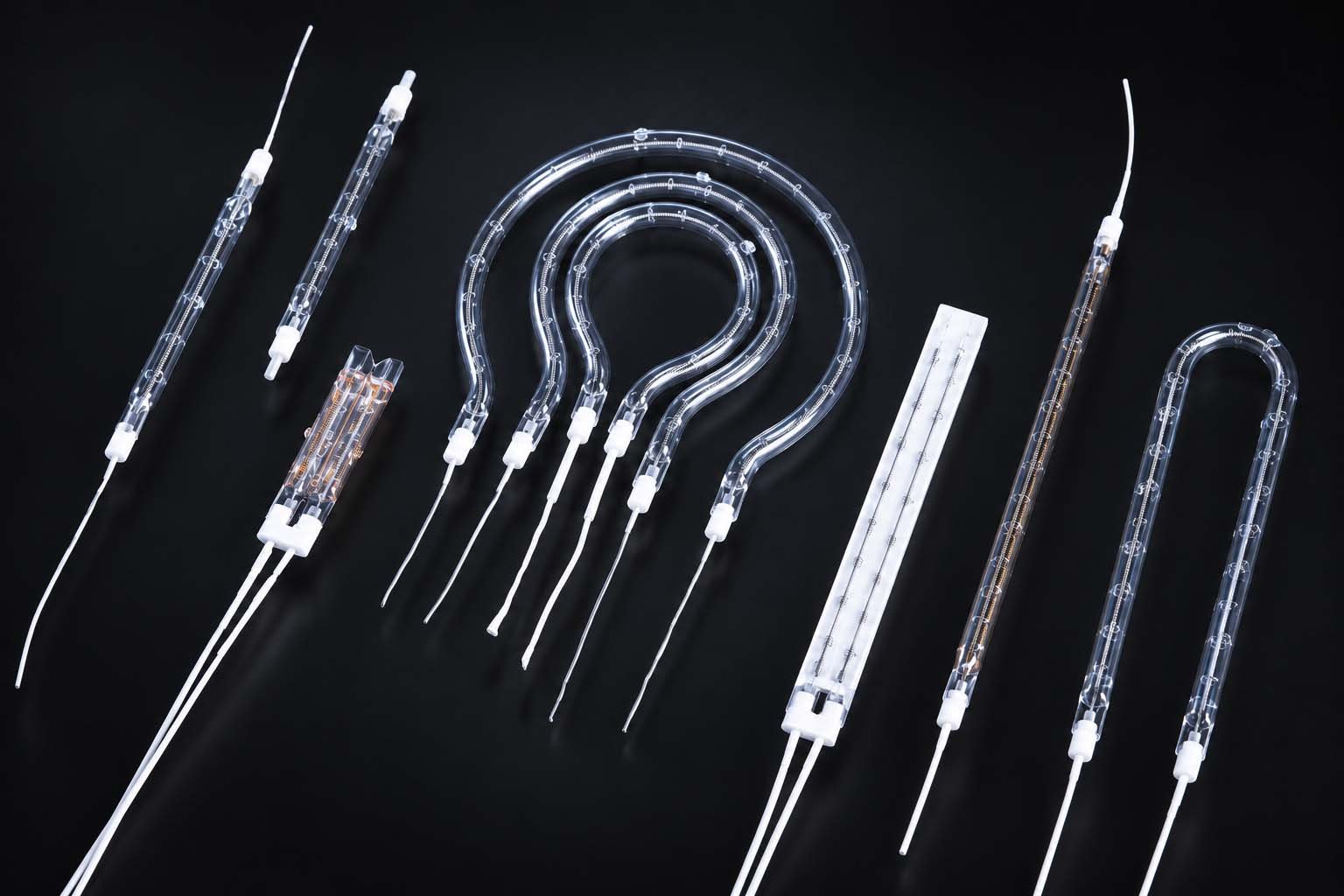

Halogen LampsQuartz support geometry around high-temperature lamp tubes

UV SystemsSleeve and lamp holders matched to curing or treatment equipment

IR Heater BanksSpacers and mounts positioning radiant tubes

Replacement ComponentsInterfaces reproduced from the original part or drawing

Product Examples

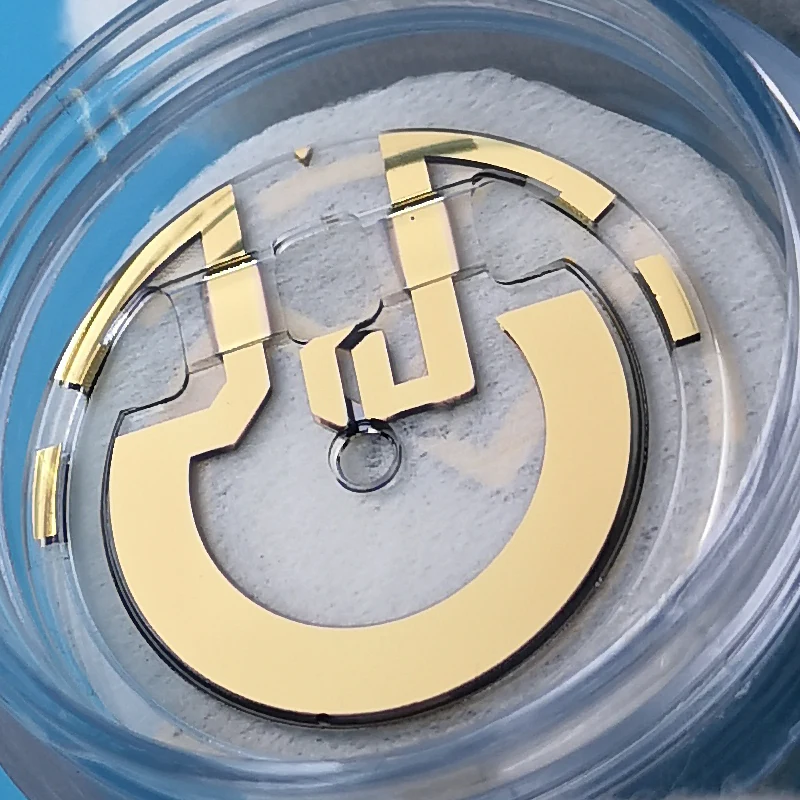

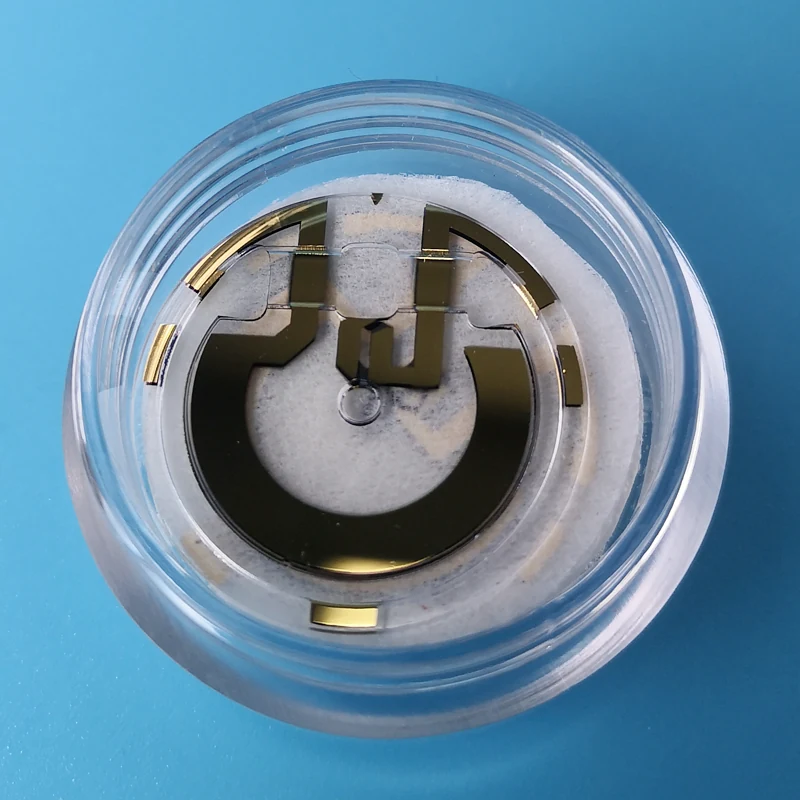

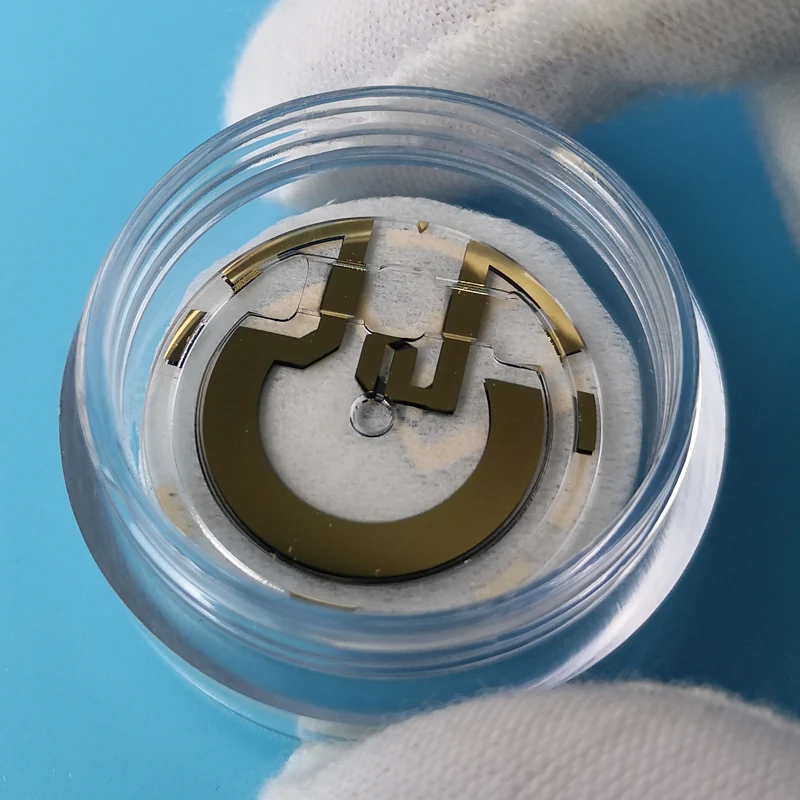

Product Forms and Finished Components

Need a holder matched to a lamp or heater?Send lamp family, tube diameter, termination geometry, mounting holes or slots, clearances and operating environment.

Open the Product Configurator

Engineering Data

Grade-Qualified Material Purity

Electric-fused / flame-fused quartz: SiO₂ ≥99.99%; synthetic JGS1-grade fused silica: ≥99.999%. Grade and lot certificate govern supplied material.
