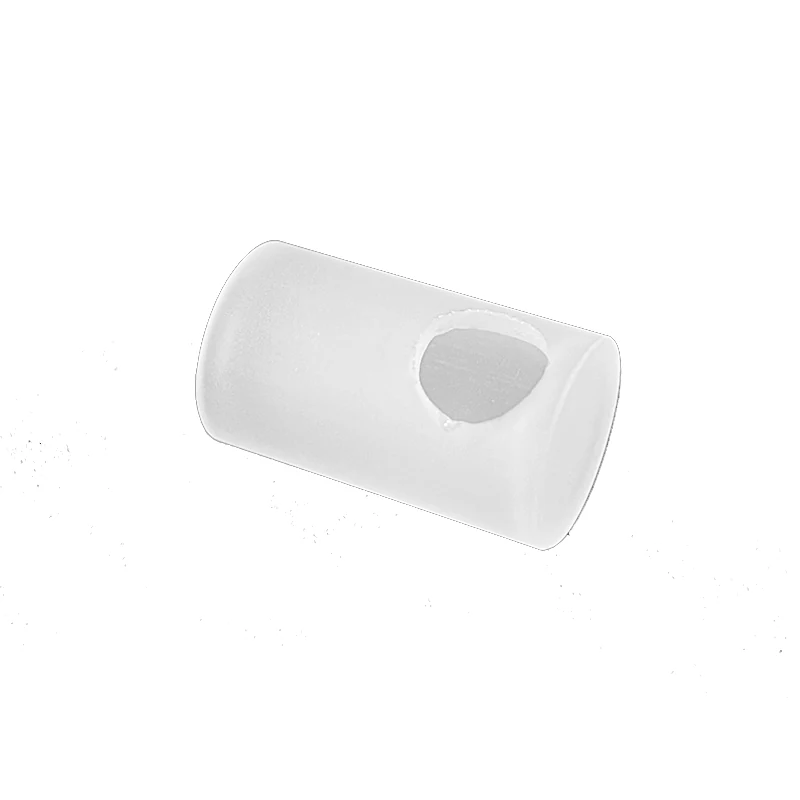

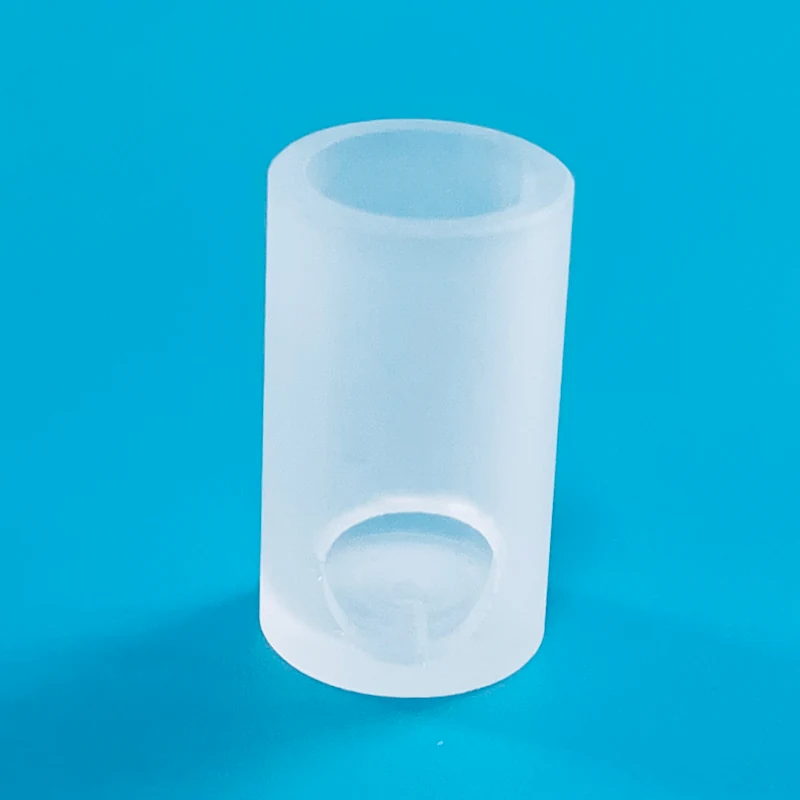

Custom Quartz Nozzles

Parameter	Factory Standard	Manufacturing Limit
Inlet OD / ID	2–50 mm	Larger on request
Outlet orifice	Ø0.3–5 mm standard; laser-drilled Ø0.1 mm option by drawing	Down to minimum orifice on request
Tip OD	Confirmed per drawing	—
Taper angle	Confirmed per drawing	—
Length	10–200 mm	Longer, confirmed per order
Concentricity (orifice-to-inlet axis)	±0.02–0.05 mm	Tighter, confirmed per order

Inquiry

Quartz nozzles machined to a defined inlet, taper, and orifice — where the flow path geometry is the actual function, not just an OD and length.

Inlet size, taper angle, and orifice diameter are one coupled flow path, not separate dimensions — a given taper angle and length fixes the relationship between inlet and orifice size, so you can't specify all three independently. Confirm which two are fixed by your process and let the third follow.

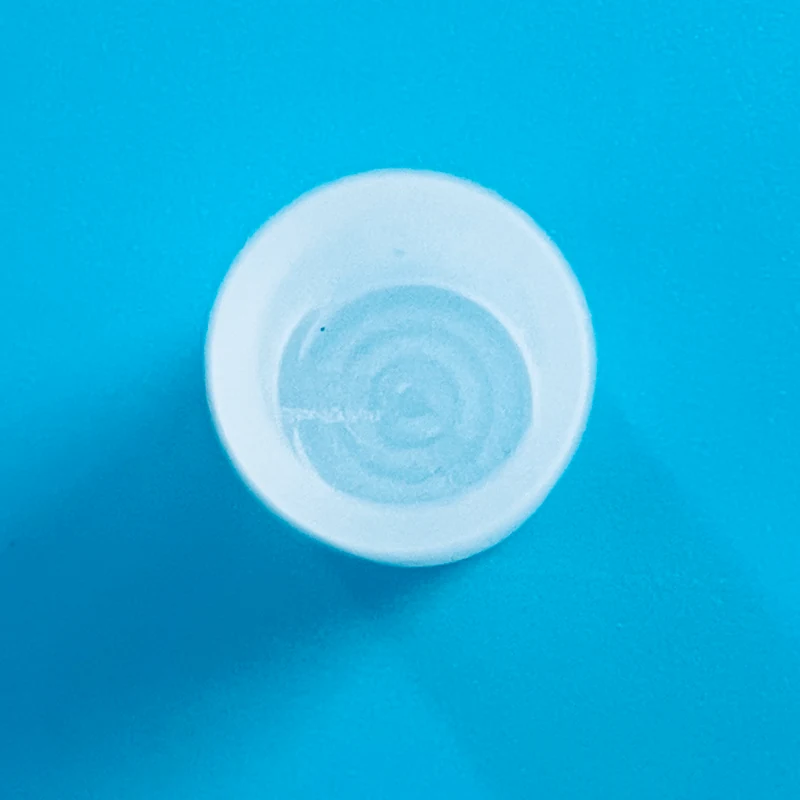

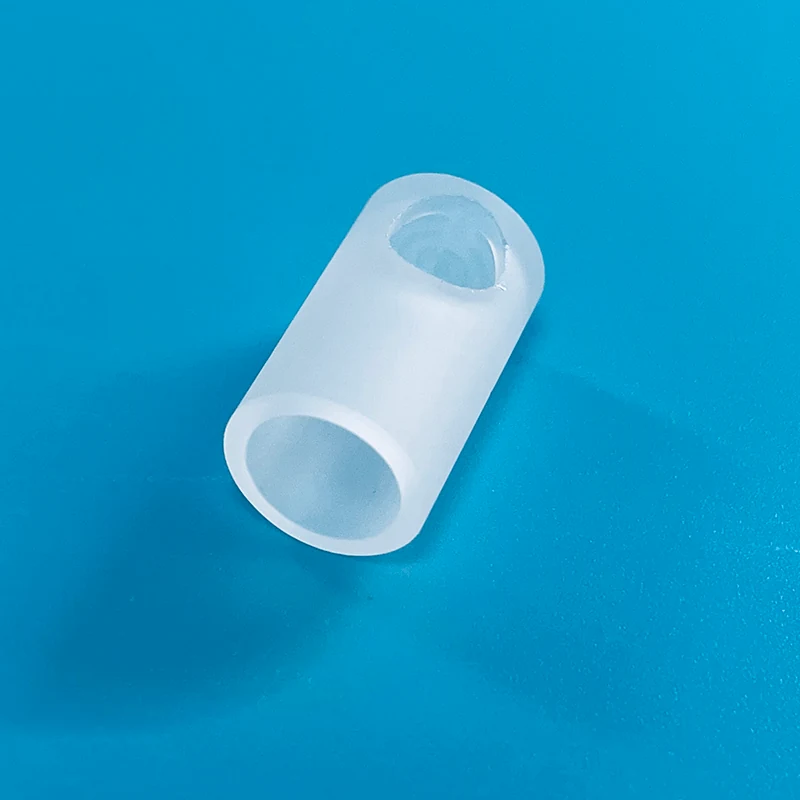

Quartz Nozzle Tip and Orifice Designs

Nozzles are drawn from tube or capillary blank stock down to a tapered tip, then cut and finished at the orifice. Orifice diameter is the dimension most often pushed to its limit — a very fine orifice narrows the achievable concentricity and increases sensitivity to any asymmetry in the taper.

Quartz Nozzles Factory Standard & Manufacturing Limit

The table above is what's repeatable without added lead time. Minimum orifice and tightest concentricity aren't both available at once — the finer the orifice, the more that constrains how precisely it can be centered on the inlet axis. Flag which matters more for your application.

Taper, Flow Path and Concentricity

Concentricity between the orifice and the inlet axis determines whether flow exits straight or at an angle — a nozzle can hit its orifice diameter spec and still misdirect flow if the taper isn't centered. Where the orifice is drilled rather than drawn to size, mechanical or diamond drilling holds openings down to about Ø0.8 mm at ±0.02 mm. Before shipment we check inlet dimensions, taper, orifice diameter, concentricity, overall length, and tip condition.

Ø0.3 mm; laser Ø0.1 mmStandard / Laser Orifice

±0.02 mmOrifice Reference

1+Hole Count

TaperFlow Geometry

ThreadInterface Option

JGS2Material Option

Flow Orifice

Orifice, Taper and Concentricity Define the Nozzle Function

Controlled Feature	Reference Capability / Requirement
Outlet Orifice	Laser-machined reference down to Ø0.1 mm where geometry permits
Orifice Tolerance	±0.02 mm industry-reference level
Hole Count	Single or multiple outlets located by drawing
Inlet OD / ID	Matched to tube, fitting or process line
Taper / Tip	Angle, tip OD and tip length dimensioned together
Concentricity	Outlet referenced to the inlet flow axis where required
Interface	Plain tube, ground joint or specified thread adapter
Spray Requirement	Angle or pattern treated as a system requirement and confirmed with the flow conditions

Nozzle Configuration

Specify the Fluid and Flow Conditions with the Geometry

Type	Geometry	Required Process Data
Straight orifice	Axial hole through a formed tip	Fluid, pressure and flow target
Tapered nozzle	Converging internal path	Inlet, orifice and taper
Multi-hole nozzle	Pattern of controlled outlets	Hole count, spacing and direction
Atomizing nozzle	Orifice and spray geometry by drawing	Fluid, gas assist and spray target
