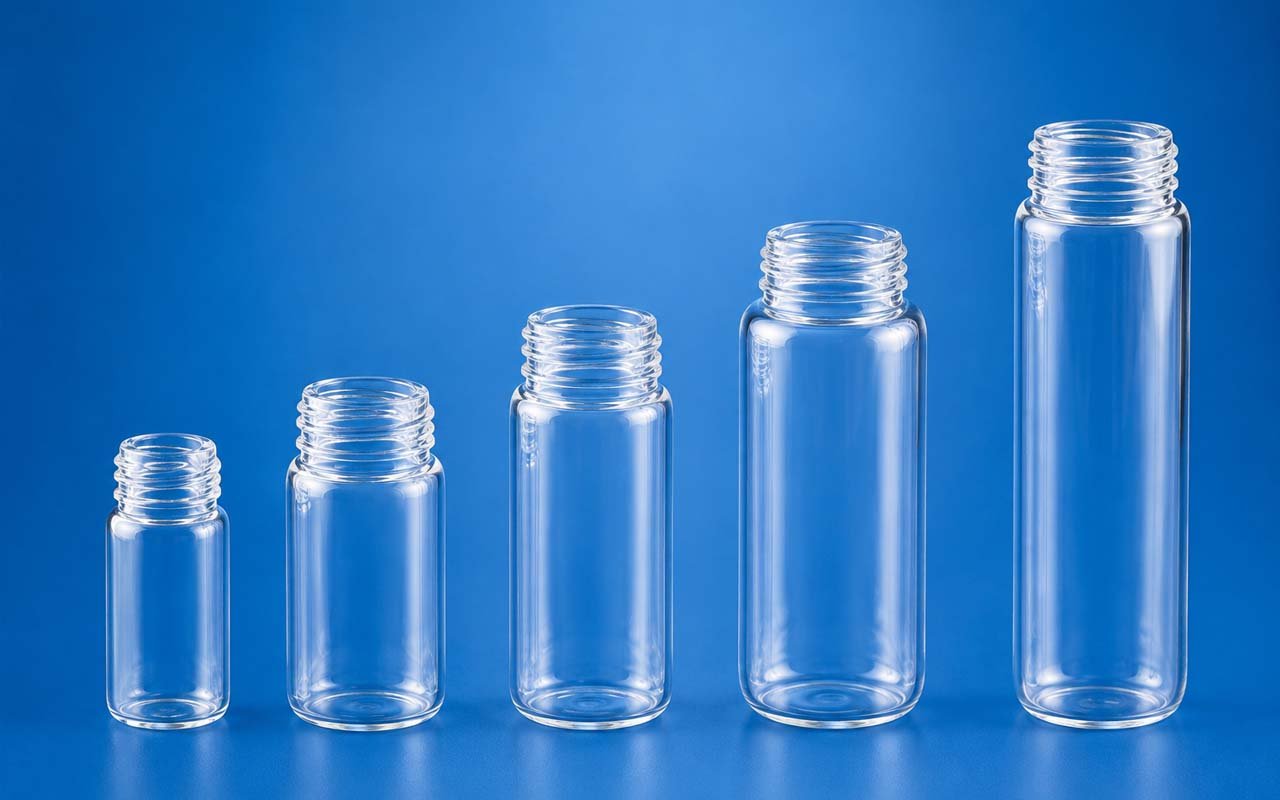

Custom Quartz Bottles & Vials

Parameter	Typical Range
Capacity	5–500 mL
OD	10–80 mm
Height	30–150 mm
Neck / mouth	Plain, screw-thread, or ground-joint
Closure	Ground stopper, screw cap, or none
Wall thickness	1–2 mm

Inquiry

Quartz bottles and vials sized by capacity, with neck and closure options matched to how they seal and how they're handled.

Capacity, OD, and neck style are confirmed together — a narrow-neck bottle and a wide-mouth vial at the same volume have different proportions, so specify which style you need rather than volume alone.

Neck, Closure and Ground-Joint Options

Screw-thread necks take a standard cap; ground-joint necks take a matched quartz stopper for a tighter seal. Plain (open) necks are available where the container doesn't need to seal — just hold and pour. Tell us which closure your application needs, since it determines the neck finish.

Quartz Bottles & Vials Size / Capacity / Joint Standard

If a ground joint is needed, confirm the standard size against what your matching stopper or equipment uses. Fabrication is hot-formed from tube stock, with the base closed and fire-polished and the neck finished to the closure type specified. Before shipment we check capacity, neck/mouth fit, base condition, wall thickness, seal fit (where applicable), and appearance.

5–100 mLCapacity Series

GL45Thread Reference

PTFEClosure Option

GroundStopper Option

Seal TestBy Agreement

JGS2Material Option

Closure Definition

Bottle Capacity Is Secondary to the Neck and Seal Interface

Controlled Feature	Reference Capability / Requirement
Capacity	5, 10, 25, 50 or 100 mL reference series
Body Size	Diameter and height matched to rack or sample equipment
Neck / Mouth	Threaded, crimp-style or ground-joint opening
Thread	GL45 common reference; other thread forms confirmed from cap data
Closure	PTFE-lined cap, matched quartz stopper or customer-specified closure
Wall / Bottom	Specified for handling, heating or sterilization cycle
Seal Test	Leak or closure test method defined only when required
Material	Transparent JGS2-class fused quartz option

Reference Bottle Series

Select the Closure Before Finalizing the Body

Nominal Capacity	Closure Direction	Required Confirmation
5 / 10 mL	Small vial or stopper bottle	Rack fit and mouth geometry
25 / 50 mL	Sample or reagent bottle	Cap, thread or ground joint
100 mL	Laboratory bottle	Closure, handling and wall section
Custom	Source or overflow bottle	Ports, tube connections and process layout

Available Forms

Configurations Defined by the Process

Screw-Top BottleThreaded neck matched to a defined cap system

Ground-Stopper BottleMatched quartz stopper and ground seat

Sample VialCompact vessel for analytical sample handling

Ported BottleSide or top connections for source and overflow service

Applications

Sample and Reagent Handling

Reagent StorageClosure geometry selected for the chemical and handling method

Analytical SamplesSmall quartz vials for high-purity sample workflows

Chromatography SupportSource or collection bottles matched to instrument tubing

Sterilization WorkflowsQuartz vessel and closure scope defined around the cycle

Need a quartz bottle matched to a cap or rack?Send capacity, body size, mouth or thread standard, closure material, wall section and sealing test requirement.

Open the Product Configurator
