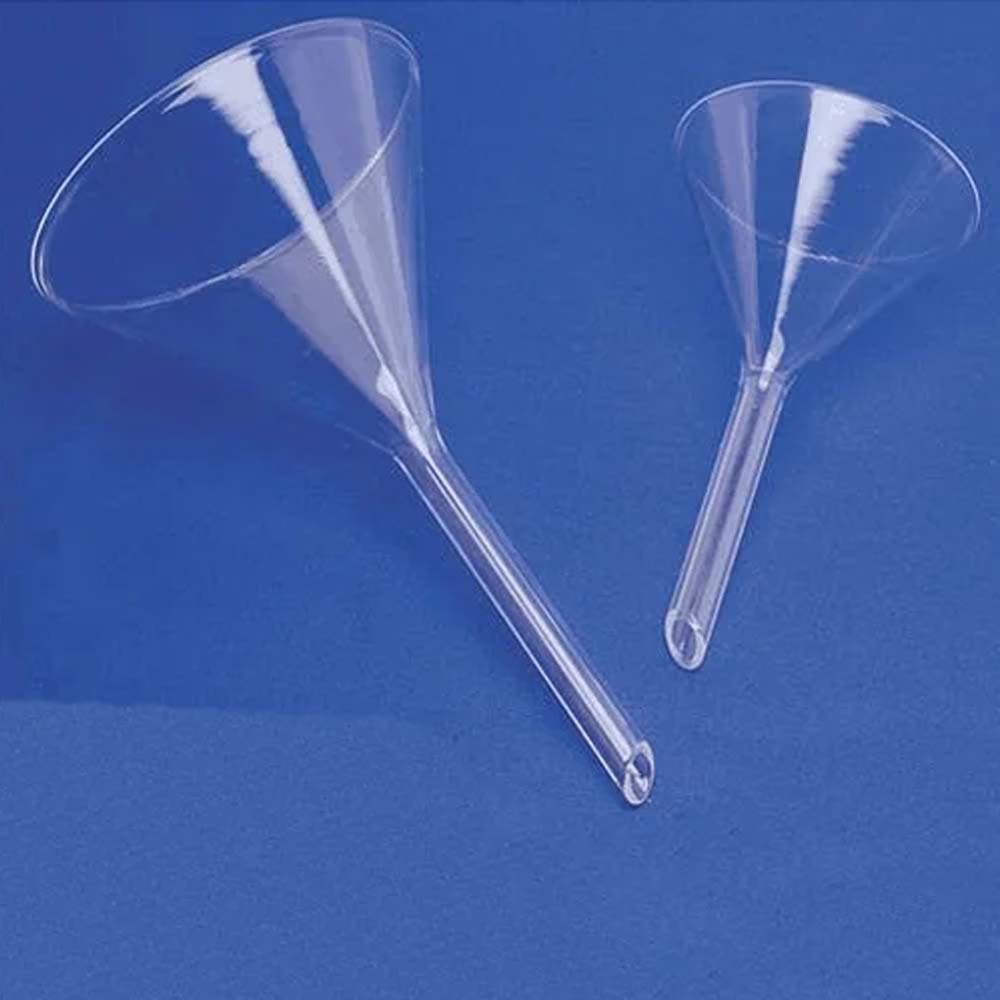

Custom Quartz Funnels

Parameter	Typical Range
Top diameter	40–150 mm
Cone angle	~60° standard
Stem OD	6–15 mm
Stem length	50–150 mm
Joint	Standard ground joints, confirmed per equipment
Frit grade (if fritted)	Confirmed per application

Inquiry

Quartz funnels sized by top diameter, cone angle, and stem — plain or fitted with a frit for filtration.

Top diameter, cone angle, and stem dimensions are quoted together — a wider top at the same cone angle needs a proportionally longer cone, which changes overall height. Send target overall height alongside top diameter if height matters for your setup.

Filter-Funnel and Fritted-Funnel Designs

Plain funnels (no frit, for pouring or simple gravity filtration with separate filter paper) are standard. Fritted funnels have a sintered quartz disc built into the cone for filtration or gas diffusion without separate filter media — see our Quartz Fritted Discs and Fritted Filters, Funnels & Bubblers pages for frit grade selection if you need one.

Quartz Funnels Size / Capacity / Joint Standard

Stem OD and length are usually set by what the funnel fits into (a flask neck, a joint, or tubing) rather than chosen independently — send the receiving opening's size alongside your funnel spec. Fabrication is hot-formed from tube stock, with the cone drawn, the stem formed, and (for fritted funnels) the frit welded in before final fire-polishing. Before shipment we check top diameter, cone form, stem fit, joint size, weld points (fritted units), and appearance.

Ø35 mmReference Mouth

Ø55 mmReference Mouth

Ø75 mmReference Mouth

Ø100 mmReference Mouth

Long StemOption

JGS2Material Option

Transfer Geometry

Mouth Diameter, Cone and Stem Must Match the Receiving Vessel

Controlled Feature	Reference Capability / Requirement
Top Diameter	Ø35, 55, 75 or 100 mm common reference series
Cone Angle	Specified from transfer rate and support geometry
Stem OD / ID	Matched to the receiving opening and flow requirement
Stem Length	Short, standard or extended by drawing
Rim	Plain or formed lip for handling
Joint	Plain stem or ground-joint connection
Frit	Porous disc and P-grade specified only for fritted funnels
Material	Transparent JGS2-class fused quartz option

Reference Mouth Series

Select the Stem from the Receiving Connection

Mouth Diameter	Form Direction	Required Confirmation
Ø35 mm	Compact transfer funnel	Stem OD and length
Ø55 mm	General laboratory funnel	Cone and receiving opening
Ø75 mm	Larger transfer or filtration	Support and flow path
Ø100 mm	Large custom funnel	Wall, stem and handling
