Custom Quartz Beakers

Parameter	Typical Range
Capacity	50–2,000 mL
Main diameter	40–150 mm
Height	50–200 mm
Wall thickness	1–3 mm
Rim	Plain or with pouring spout
Bottom	Flat

Inquiry

Quartz beakers sized by capacity and rim/bottom style — the basic open vessel this category builds from.

Capacity isn't specified on its own — it follows from diameter, height, and wall thickness together, so send those dimensions or a target volume, not both assumed to match automatically.

Spout, Rim, Wall and Bottom Options

A pouring spout is standard on most sizes; a plain rim (no spout) is available where the beaker is used with a separate transfer tool instead. Wall thickness is chosen for handling durability and thermal shock resistance — thicker walls handle rapid heating/cooling better but respond more slowly to temperature change. Bottom is flat as standard, for stability on a hot plate or stand.

Quartz Beakers Size / Capacity / Joint Standard

Beakers don't typically use a ground joint — if your application needs one (for a fitted cover or connection), tell us and we'll confirm a compatible rim design. Fabrication is hot-formed from tube or plate stock, with the rim fire-polished and the bottom formed flat. Before shipment we check capacity/dimensions, rim condition, bottom stability (sits flat, doesn't rock), wall thickness, and appearance.

5–1000 mLCapacity Series

8Reference Capacities

±5%Capacity Reference

Low FormBody Option

High FormBody Option

JGS2Material Option

Laboratory Vessel

Capacity, Body Proportion and Pouring Rim Define a Quartz Beaker

Controlled Feature	Reference Capability / Requirement
Capacity	5–1000 mL reference series; custom capacity by drawing
Body Diameter × Height	Low- or high-form proportions selected for the heating setup
Wall / Bottom Thickness	Specified independently for thermal use and support
Spout	Plain rim, formed pouring spout or equipment-specific lip
Graduations	Optional reference markings; not volumetric certification unless agreed
Side Arm / Jacket	Ports or double-wall jacket added from a process drawing
Material	Transparent JGS2-class fused quartz option
Capacity Tolerance	±5% industry-reference level for nominal vessels

Capacity Series

Reference Sizes for Quote Comparison

Size Group	Nominal Capacities	Available Direction
Micro	5 / 10 / 25 mL	Low form or custom small vessel
Small	50 / 100 mL	Low or high form
Medium	250 / 500 mL	Spout, side arm or jacket option
Large	1000 mL and custom	Confirm support and thermal method

Available Forms

Configurations Defined by the Process

Low-Form BeakerWide body for heating and evaporation

High-Form BeakerNarrow body for reduced footprint

Side-Arm BeakerPort added for transfer, gas or vacuum connection

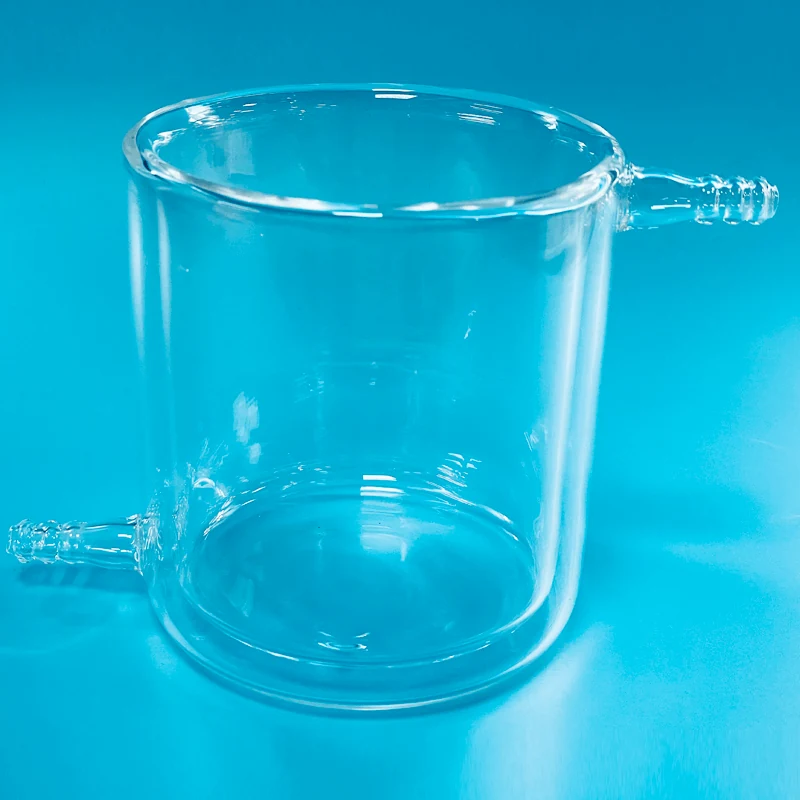

Jacketed BeakerDouble-wall body with inlet and outlet connections

Applications

Heating, Digestion and Synthesis

High-Temperature HeatingOpen quartz vessel for controlled laboratory heating

Sample DigestionHigh-purity vessel geometry for analytical preparation

Chemical SynthesisCustom ports or jackets for process control

EvaporationWide-body forms that increase exposed liquid area

Need a beaker outside standard laboratory proportions?Send capacity, OD × height, wall and bottom thickness, spout, markings and any side-arm or jacket layout.

Open the Product Configurator
