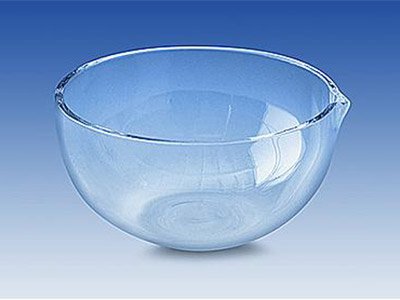

Custom Quartz Evaporating Dishes

Parameter	Typical Range
Diameter	50–150 mm
Depth	20–50 mm
Capacity	50–500 mL
Wall thickness	1–3 mm
Rim	Plain or with pouring spout

Inquiry

Shallow quartz dishes sized by diameter and depth for evaporation, ashing, or heating over a broad surface area.

Capacity follows from diameter and depth together, not either one alone — an evaporating dish is defined more by its shallow, wide proportions than by volume, so specify diameter and depth rather than target volume by itself.

Rim, Bottom and Spout Options

A pouring spout on the rim is standard, for transferring contents after evaporation without a separate tool. Bottom is typically slightly rounded or flat depending on how the dish sits on a hot plate or stand — flat gives better stability, rounded distributes heat slightly more evenly.

Quartz Evaporating Dishes Size / Capacity / Joint Standard

Diameter is the dimension that most affects evaporation rate (more surface area, faster evaporation at a given depth), so if your process has a target evaporation time, that's more useful to share than a target capacity alone. Fabrication is hot-formed from plate or tube stock, with the rim fire-polished and the bottom shaped for stability. Before shipment we check diameter, depth, stability (sits flat, doesn't rock), wall thickness, rim condition, and appearance.

30–200 mLCapacity Series

5Reference Capacities

ShallowBody Option

DeepBody Option

SpoutOptional Rim

JGS2Material Option

Evaporation Geometry

Diameter, Depth and Base Stability Determine the Useful Surface Area

Controlled Feature	Reference Capability / Requirement
Capacity	30, 60, 100, 150 or 200 mL reference series
Diameter × Height	Finished body dimensions stated with nominal capacity
Depth	Shallow or deep form selected from evaporation rate and splash control
Wall / Bottom	Specified separately for heating and support
Rim	Plain lip or formed pouring spout
Base	Stable contact area matched to the heating surface
Material	Transparent JGS2-class fused quartz option
Capacity	Nominal unless a calibrated volume is specifically requested

Reference Capacity Series

Choose Dish Depth Around the Evaporation Method

Nominal Capacity	Form Direction	Required Confirmation
30 / 60 mL	Small shallow or deep dish	Heating surface and sample load
100 mL	General laboratory dish	Diameter, depth and spout
150 / 200 mL	Larger concentration vessel	Base support and handling
Custom	By drawing	Special lip, cover or process fit

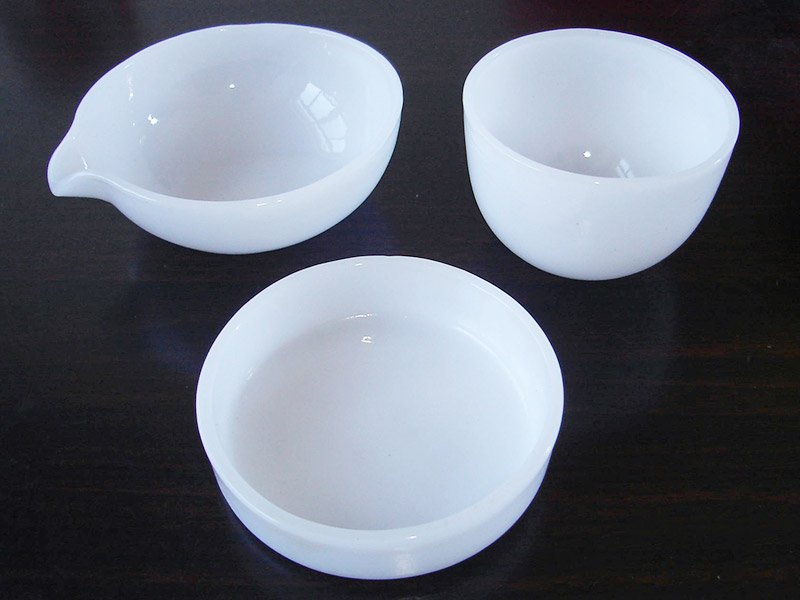

Available Forms

Configurations Defined by the Process

Shallow DishLarger exposed area for concentration and evaporation

Deep DishGreater splash containment for heated samples

Spouted DishFormed lip for controlled transfer

Flat-Base DishContact surface defined for the heater or support

Applications

Evaporation, Concentration and Ashing

Sample ConcentrationShallow open geometry for solvent removal

AshingQuartz dish selected for residue collection and heating

High-Temperature TransferSpouted form for controlled pouring

Need an evaporating dish matched to a heating surface?Send capacity, diameter, depth, wall and bottom section, base support and rim or spout requirement.

Open the Product Configurator
