Custom Shaped & Redrawn Quartz Rods & Profiles

Profile Capability	Available Options	Manufacturing Method
Profile envelope	2–50 mm typical width / height	Continuous redraw or secondary machining
Length	50–1500 mm typical	Cut lengths and finished profile components
Cross-sections	Flat, D, square, rectangular, polygonal or semicircular	Controlled continuous redrawing
Longitudinal features	Grooves, channels, flats and multi-flat sections	Redrawn through the complete production length
Local features	Flats, grooves, steps and reduced ends	Grinding or machining only in the functional zone
Transitions	Tapers, round-to-profile and formed coupling sections	Localized flame forming
Surface	As-drawn, locally ground or polished	Selected functional faces or axial zones
Finished supply	Profile stock, cut blanks or assembly-ready parts	Profile, feature, twist and end-orientation inspection

Inquiry

Custom Shaped & Redrawn Quartz Rods & Profiles

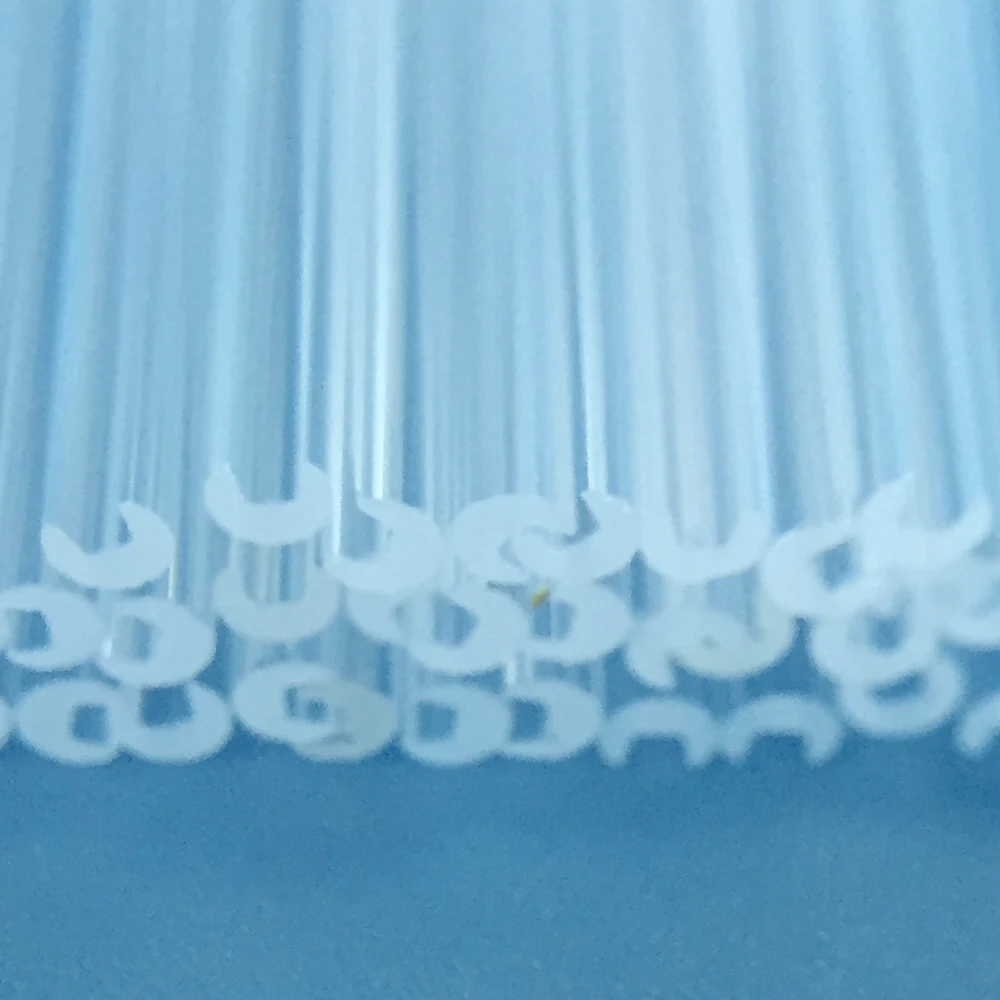

Shaped & Redrawn Profiles quartz glass product image 4

Shaped and redrawn quartz rods provide a non-round cross-section along the complete part or over a selected functional area. Typical profile envelopes are 2–50 mm with finished lengths of 50–1500 mm. Available forms include D-shaped, square, rectangular, triangular, semicircular, multi-flat and grooved profiles.

Continuous redrawing is used when the same geometry runs along the length. Local grinding and machining add short flats, grooves and steps, while flame forming creates tapers and transitions. These routes can be combined to reduce separate fixtures and assembly components.

Available Quartz Profile Shapes

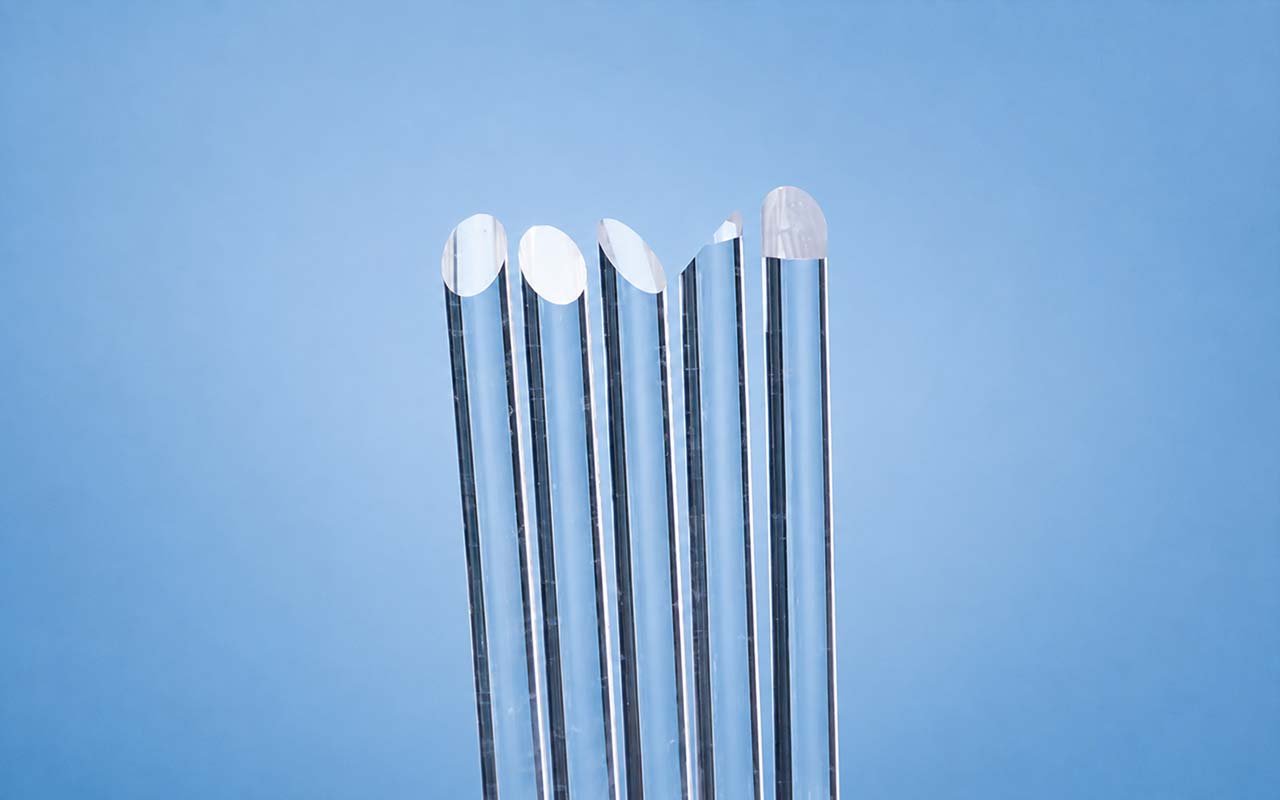

Flat and D-Shaped Rods

One flat creates a stable locating face while retaining most of the strength and handling behavior of round rod.

Single flat
Opposed flats
D-profile
Multi-flat section

Polygonal Profiles

Square, rectangular, triangular and customer-defined polygonal sections fit keyed holders and compact assemblies.

Square
Rectangular
Triangular
Custom polygon

Semicircular and Segment Rods

Half-round and segment profiles combine a curved optical or thermal surface with a flat assembly interface.

Semicircle
Circular segment
Flat-back profile

Grooved and Channel Profiles

Longitudinal channels guide fibers, wires, tubes or mating quartz pieces without attaching a separate guide.

V-groove
U-groove
Open channel
Multiple grooves

Tapered and Stepped Profiles

A shaped body can transition to a reduced, round or differently oriented end for coupling and mounting.

End taper
Reduced section
Mounting shoulder
Round-to-profile transition

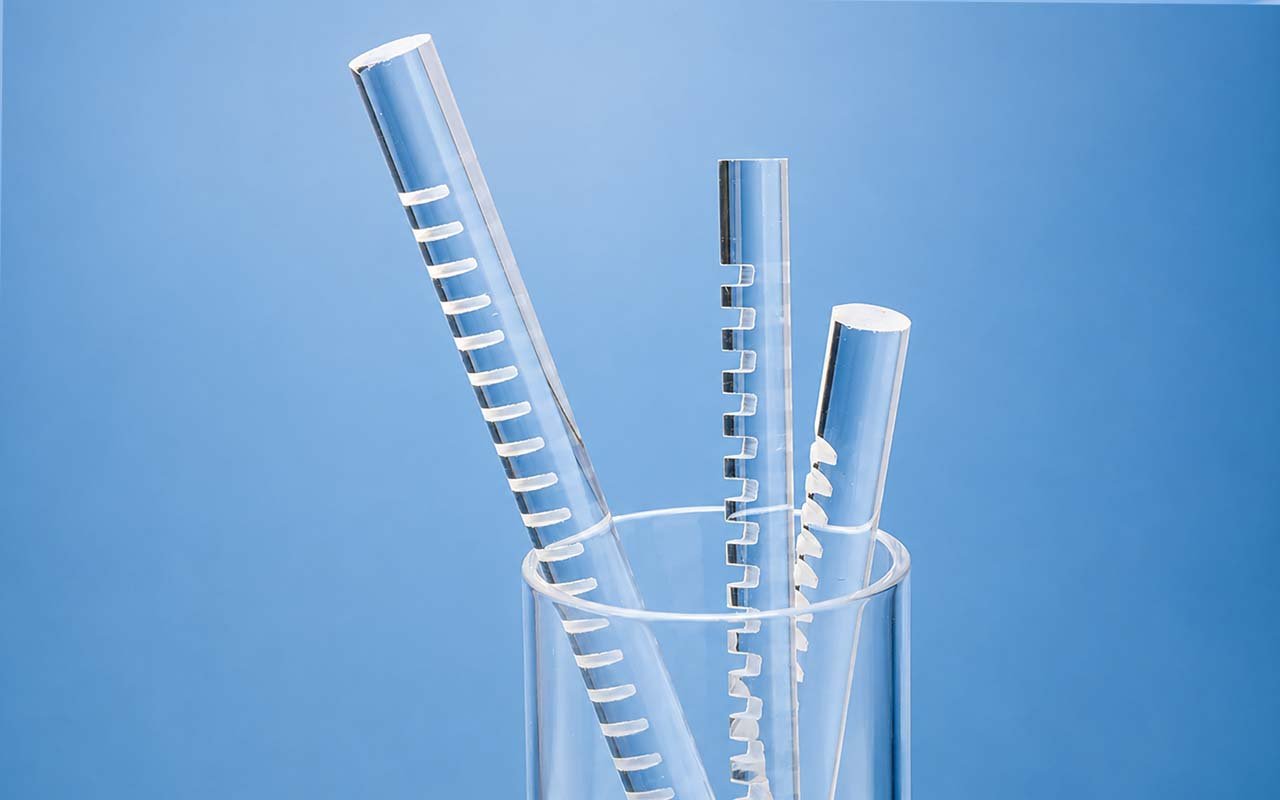

Locally Machined Profiles

Short flats, notches and grooves are added only where required, leaving the remaining rod round and as-drawn.

Local flat
Positioning notch
Short groove
End key

Quartz Profile Manufacturing Capabilities

Three manufacturing routes cover most custom rod profiles. The route is selected by whether the feature is continuous, local or thermally formed.

Continuous Profile Redrawing

Round quartz stock is heated and redrawn through controlled tooling so the shaped cross-section continues along the production length.

D, square and rectangular sections
Polygonal and semicircular profiles
Longitudinal channels and grooves

Best for: repeated geometry along the complete length

Local Grinding and Machining

Material is removed only in the functional zone, allowing a round or shaped rod to receive a short flat, notch, step or locating groove.

Local flats and grooves
Reduced ends and shoulders
Positioned locating features

Best for: short features with controlled axial position

Flame-Formed Transitions

Localized heating creates tapers, reduced sections and transitions between round and non-round areas without a sharp machined shoulder.

End tapers
Round-to-profile transitions
Formed coupling sections

Best for: smooth transitions and later quartz joining

Cutting, Finishing and Inspection

Profiles are cut to length and supplied with cut, ground, fire-finished or polished ends. Cross-section, twist and feature location are checked from the functional datum.

50–1500 mm typical length
Local ground or polished faces
Profile and orientation inspection

Output: finished profiles ready for fixtures and assemblies

Manufacturing Route Comparison

Manufacturing route	Suitable geometry	Result
Continuous redrawing	One repeated cross-section along the full length	Efficient batch production of D, polygonal, semicircular and grooved profiles
Grinding or machining	Short flats, grooves, notches, steps and end keys	Precisely positioned local features on round or shaped stock
Flame forming	Tapers, reduced sections and smooth transitions	Continuous glass geometry suitable for joining and thermal use
Combined process	Continuous profile plus local functional features	Installation-ready component with fewer separate assembly parts

Surface and End Finishing

Profiles can retain their as-drawn surface or receive local grinding and polishing on selected faces. Ground flats provide mechanical location, polished faces create clear optical zones, and cut profiles can receive fire-finished or ground-square ends. Only the functional surfaces need secondary finishing.

How Custom Profiles Simplify Assemblies

A locating flat can replace a separate anti-rotation key. A longitudinal groove can guide a fiber or small tube without an attached channel. A shaped-to-round transition can connect the profile directly to standard quartz tubing or rod. Integrating these features into the quartz geometry reduces part count and maintains a nonmetallic process-contact path.
